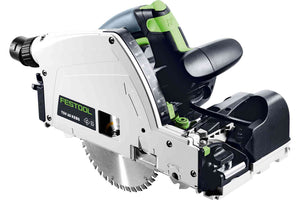

Festool 577748 TSV 60 KEB Scoring Blade Plunge Cut Track Saw w/Rail
$1,175.00 - $1,195.00
Ships: Within A Week
Splinter-free sawing like never before. Perfect from the very first cut.
Since 1980, Festool plunge-cut saws have been known for their reliable quality and absolute precision. Our objective: The perfect cut. With the TSV 60 K plunge-cut saw with scoring function, we have achieved exactly that. Splinter-free sawing on both sides now from the very first cut. Coupled with the built-in KickbackStop, you and your workpiece are protected from dangerous kickbacks and thanks to the ideal combination of Festool system accessories, your work can always be precise and tailored to requirements, even when on the move. With the TSV 60 K, workshop-quality results can be replicated on the construction site – as good as with a stationary machine.
- Splinter-free: The scoring ensures splinter-free work results on both sides from the very first cut.
- Long-lasting: Diamond scoring saw blade with very long service life for perfect cut quality time after time.
- Saw system: comprehensive system with ideal accessories for perfect panel cutting.
- Safer: the unique KickbackStop reduces the risk of injury caused by kickback during sawing or plunge-cutting into the workpiece
- Versatile: 60 mm cutting depth and can be combined with the FSK cross cutting guide rail or FS guide rail.
- Swivels with: perfect scoring, even on mitre cuts from 0° to 45°.
- Flexible: Both the scoring saw blade and the main saw blade can be manually activated and deactivated.
- Convenient: The FastFix spindle stop on the main saw blade and the possibility of standing it on its side make changing the saw blade very simple, even with the scoring saw blade.
- Constant: EC-TEC motor in combination with the thin kerf saw blades ensures work progresses without difficulty whilst requiring less effort.

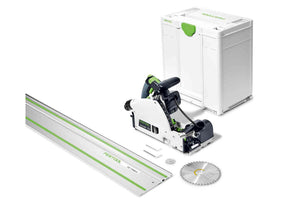

Includes
- 42-tooth fine cut blade
- Scoring blade
- Select Guide Rail above from: 75" FS | 75" FS/2-KP *Longer guide rails also available to choose from on orders picked up from us*
- Sight window
- Hex Key
- Allen Key
- All packed in SysGen3 M437 Systainer
Specifications
- Circular saw blade arbor size: .787" (20mm)
- Bevel cuts: 0 to 45 degrees
- Cutting depth: 2-7/16" straight down and 1-3/4" at 45 degrees
- Power consumption (circular saw / scorer): 1500 / 190 watt
- Saw blade speed (circular saw / scorer): 3,000-6,800 rpm / 22,000 rpm
- Saw blade diameter (circular saw / scorer): 6-5/8" (168mm) / 1-27/32" (47mm)
- Dust extraction connection diameter: 1-1/16" to 1-7/16" (27/36mm)
- Weight: 13.23 lbs (6 kg)
- Power cord: US version is hard-wired (no Plug-it cord)
Features & Benefits
Integrated scoring function
Ensures splinter-free cuts on both sides from the very first cut. That way, the cut edges are ready for further work straight away.
Diamond scoring saw blade
Guarantees a very long service life and perfect cut quality time and time again.
Scoring function track and depth adjustment
Precision adjustments of the scoring saw blade for a splinter-free cutting edge.
Switching the scorer on and off
Depending on the application, the scoring function can be activated and deactivated as required.
Perfect results
Thanks to the guide rails fixed with fastening clamps and the tool-free adjustable guide jaws, the TSV 60 K runs on the guide rail without any play at all.
Enhanced safety thanks to the unique KickbackStop
The integrated KickbackStop reduces the risk of injury and damage to the workpiece caused by kickback during sawing or plunge-cutting into the workpiece. Once the saw has been triggered, it is ready for use straight away without replacements or additional costs.
Cross cuts reimagined
The TSV 60 K plunge-cut saw can also be combined with the FSK cross-cutting guide rail, for a portable system enabling quick and accurate cross cuts to be made. Together with the tried-and-tested guide rails, the TSV 60 K can offer maximum flexibility of use.
Exact cuts, even at an angle
The scoring unit swivels. For splinter-free mitre cuts of 90° to 45°

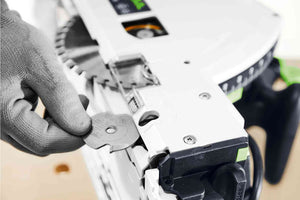

Easier saw blade changing
The FastFix spindle stop on the main saw blade and an additional spindle stop for the scoring saw blade make it extremely easy to change the saw blade. The compact, sophisticated design means the saw can be set down on its side, which simplifies changing of the saw blade.
Best orientation for plunge cuts
The transparent sliding viewing window and the additional markings for the starting and end point to the left and right of the machine provide a good view of the saw blade. What's more, there are plunge-cut markings for the plunge-cut area of the scoring saw blade.
Exact depth setting
The improved accuracy of the cutting depth setting, with a dual indicator and fine adjustment guarantees exact setting. Improved handling and parallax-free reading come as standard.
Healthy working with a system
The Festool dust extraction system is well designed, right down to the smallest detail. Improved extraction with the Cleantec system sleeve and a viewing window which can be lowered make virtually dust-free working a reality.
Precise working with a system
Combined with our guide rails, a wide range of saw blades, the adapted extraction system, MFT tables, and angle stop, we offer a top-class sawing system. The cut edges can be worked on straight away with the CONTURO edge bander.
More options thanks to control electronics
Our fitted control electronics enable temperature monitoring, a quick-acting brake and speed control for optimum adaptation to the material.
