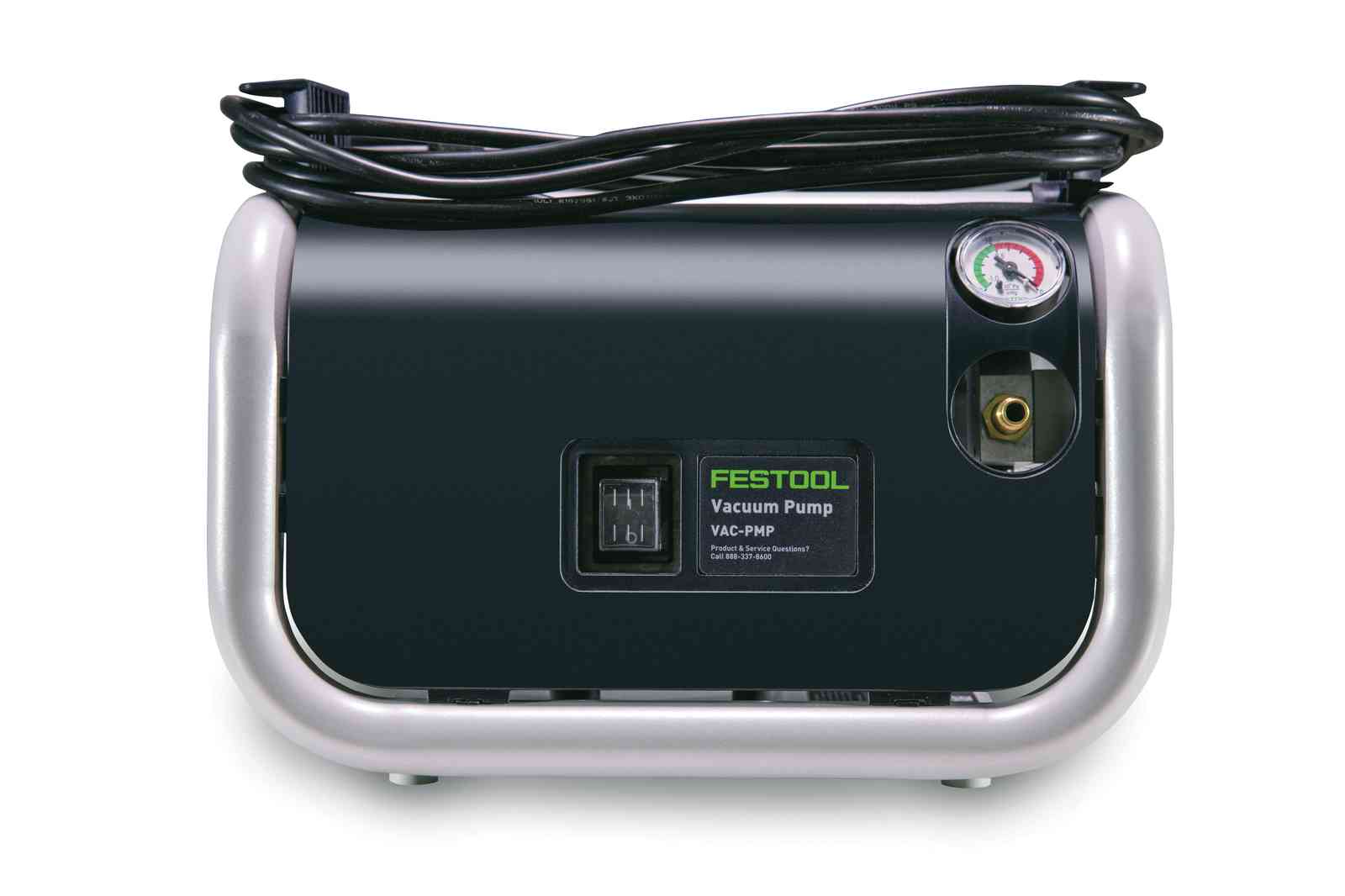

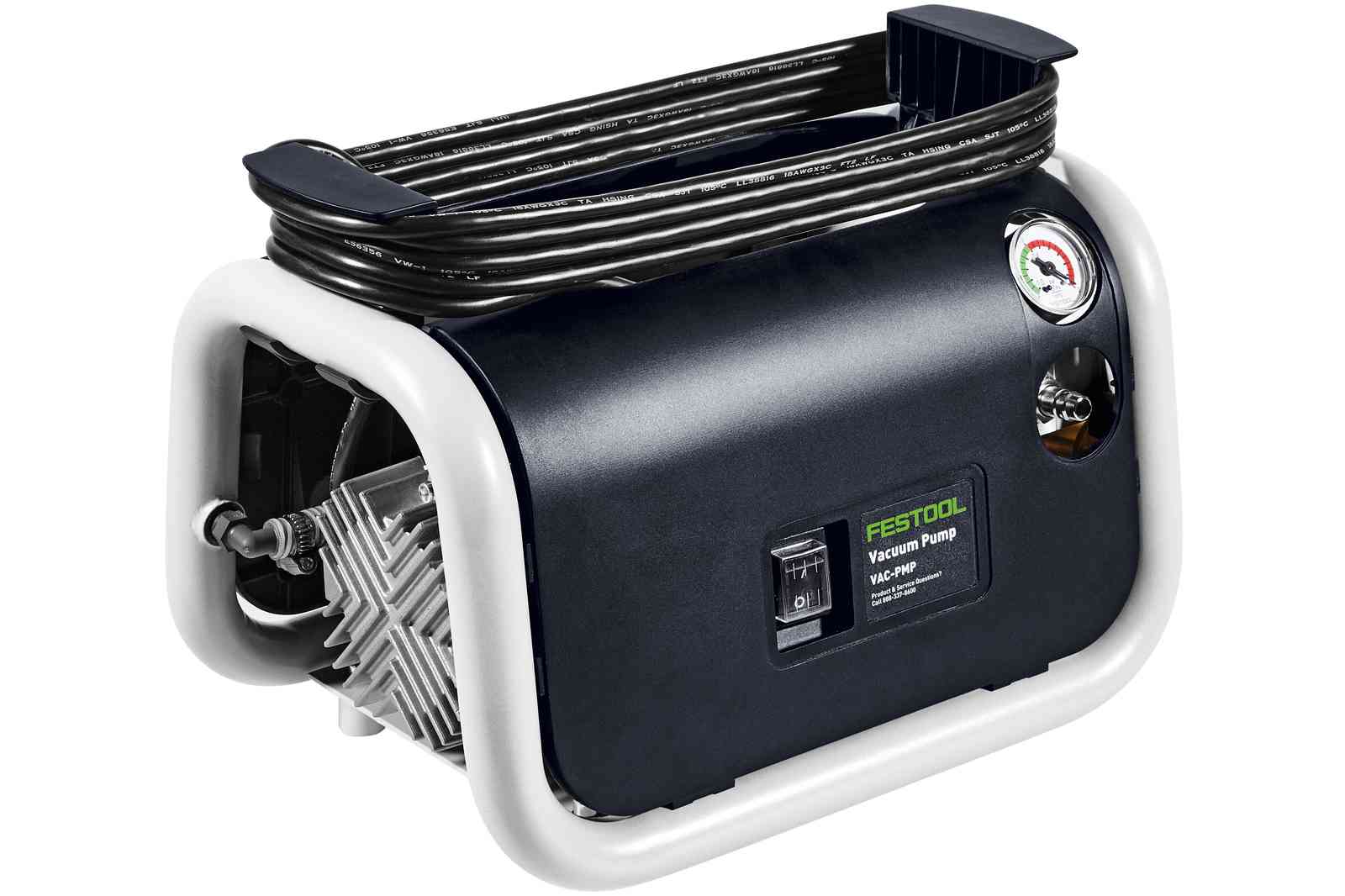

Vacuum Pump for use with Clamping Modules for suction-based, non-marring clamping.
Work more efficiently with the new VAC SYS System. With proven vacuum-based suction clamping, the VAC SYS provides a highly effective and ergonomic work platform for nearly any project. Effectively clamp material or a workpiece for effortless machining and finishing while protecting delicate surfaces from clamp damage.
Pressure: 150 mbar
Pump Capacity: 2.06 CFM (3.5 m3/h)
Power Consumption: 120 watts / 1 amp, 120 V AC
Noise (Sound Level): 55 dBA
Motor Speed: 3300 RPM
Pump Speed: 3600 RPM
Ambient Temperature Range: 41° - 104° F (5° - 40° C)
