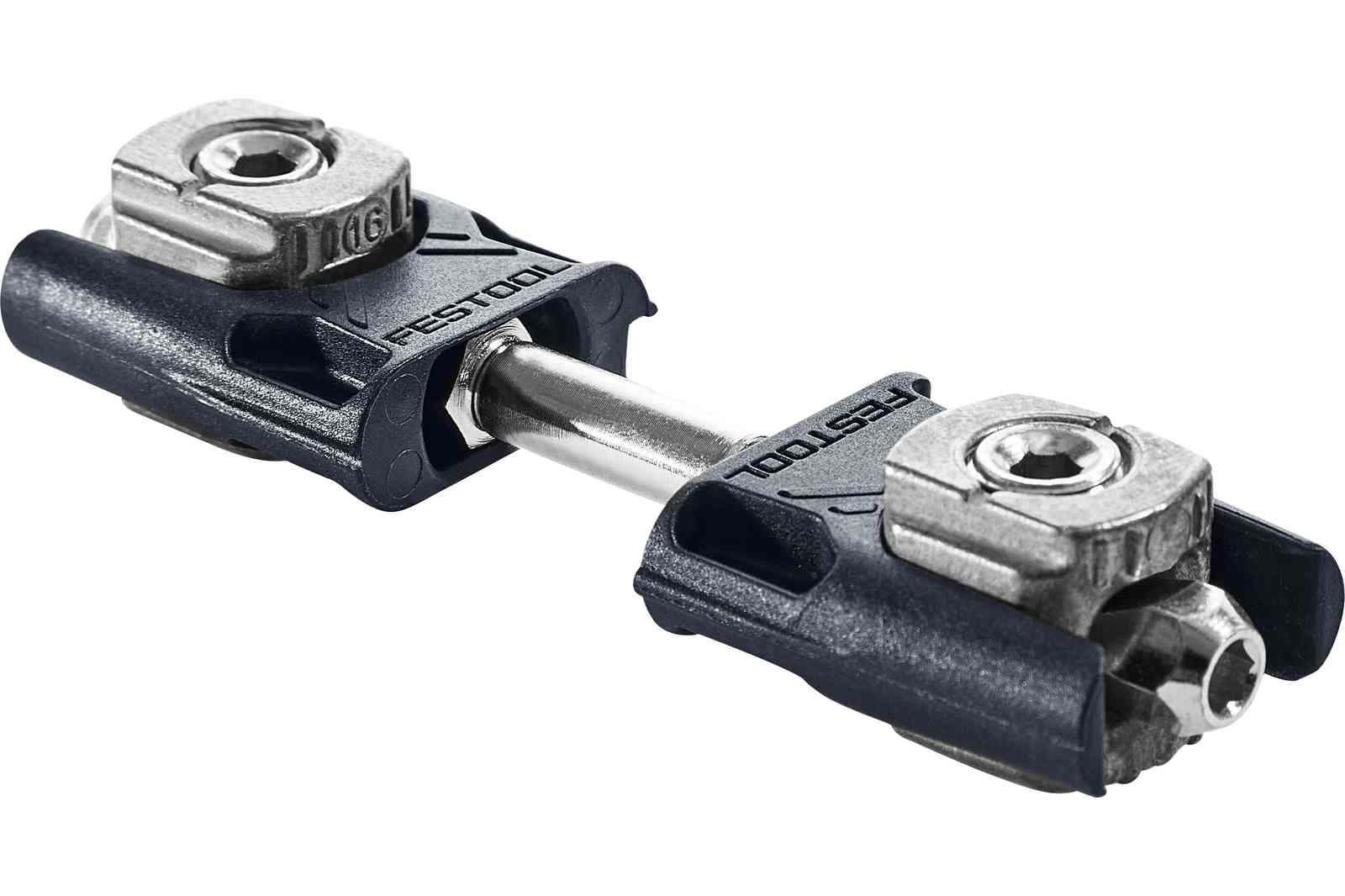

Festool 203169 Center panel connector MSV-LR32 D8/25, DF500

Ships: Immediately

Domino fastener compatible with the DF 500 Joiner.

Requires Drill Template & Hinge Location Cutter.

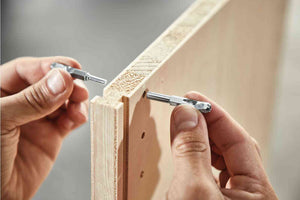

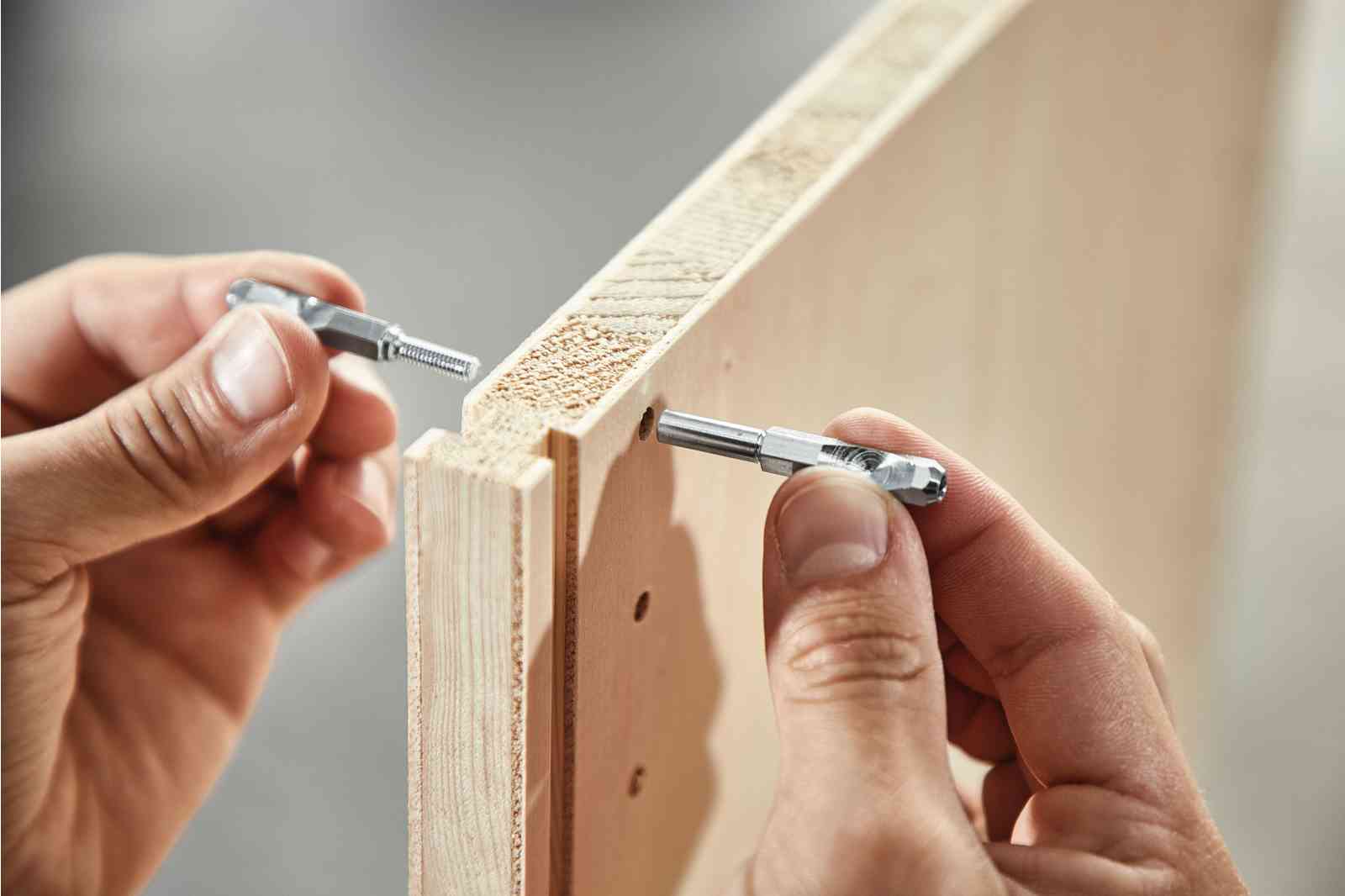

Thanks to the DOMINO connectors’ high tolerance compensation and high stability, the detachable system enables seamless assembly and disassembly of a piece of furniture, in the workshop as well as the jobsite. The connectors’ large tightening distance and long blots make furniture assembly significantly easier. Casework assembly is therefore no problem, and you can do it easily on your own.

Fast- Quick and simple machining processes with the Domino Joiner provide the basis for rapid assembly of at and corner joints utilizing Domino fasteners for knock-down design. Allowing for rapid building, moving, and reassembling of large pieces.

Stable- Based on the Domino mortise-and-tenon principle, joints made with the Domino joiner benefit from the design of the oblong mortise and mating tenon and the knockdown metal fastener is robust with high connection strength.

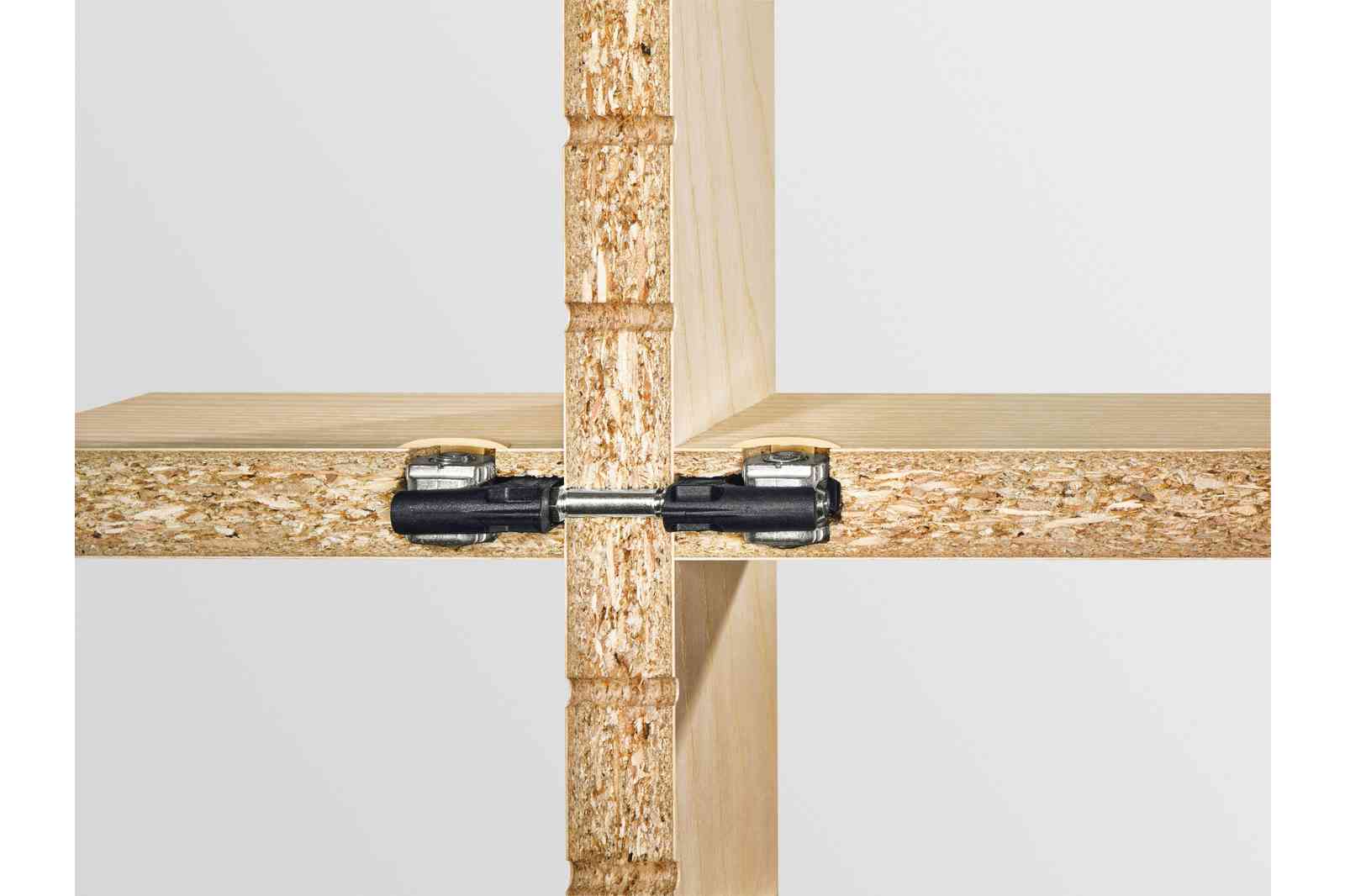

Flexible- Connect frames, panels, tops, and other large joints and pieces and easily disconnect and reconstruct as needed.

  • The flush-screwed fixture elements protect each furniture component from being scratched
  • Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
  • The detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm (3/4" to 1-1/8")

Includes

  • 25x Bolt with external thread for centre panel connector
  • 25x Bolt with internal thread for centre panel connector
  • 50x Plastic trays
  • 50x Cross anchor with threaded pin
  • Without cover caps
  • In carton
