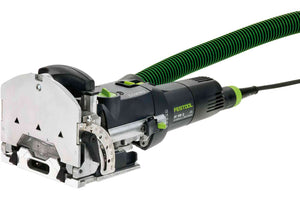

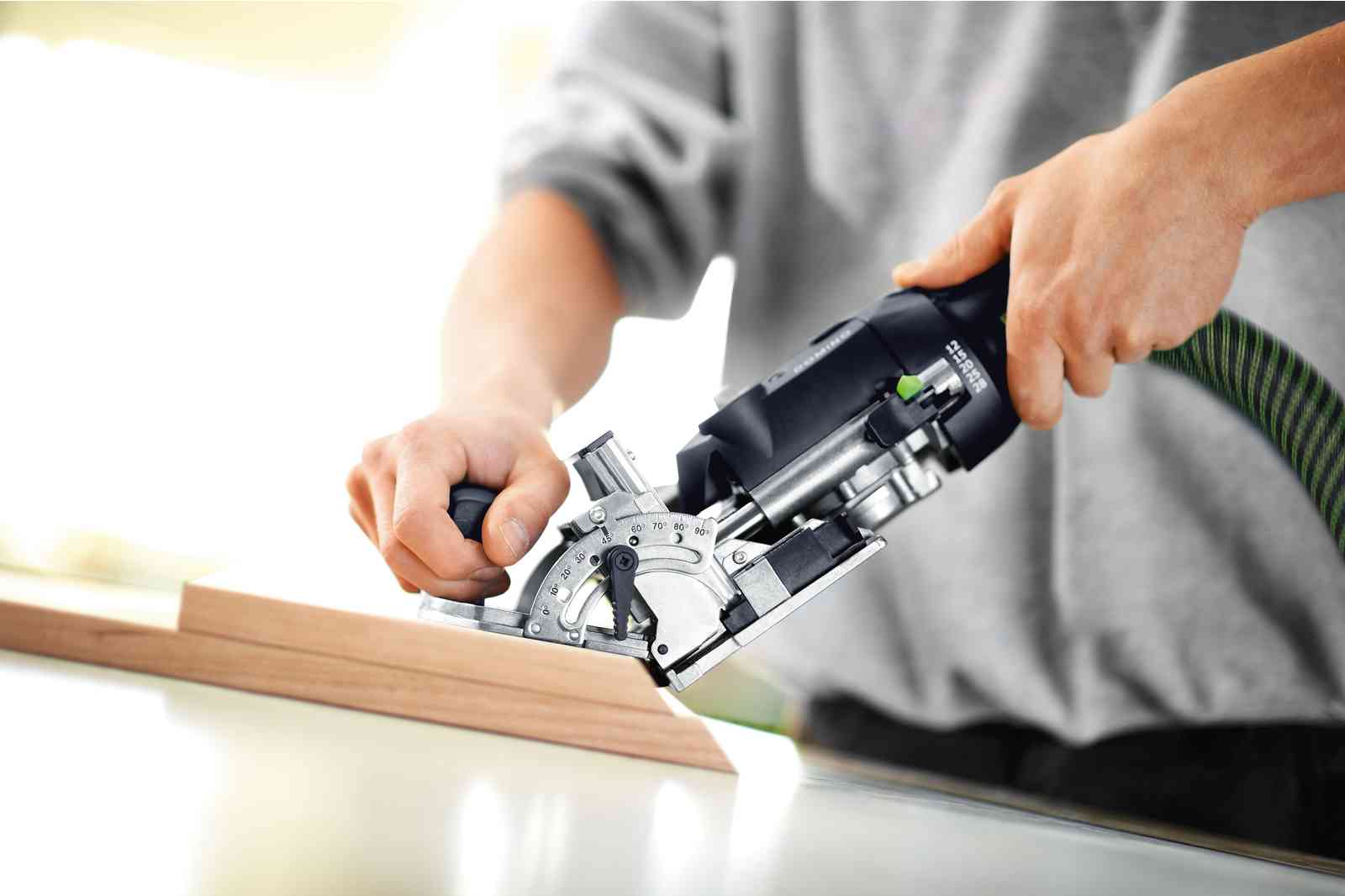

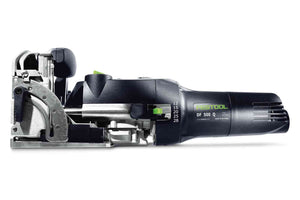

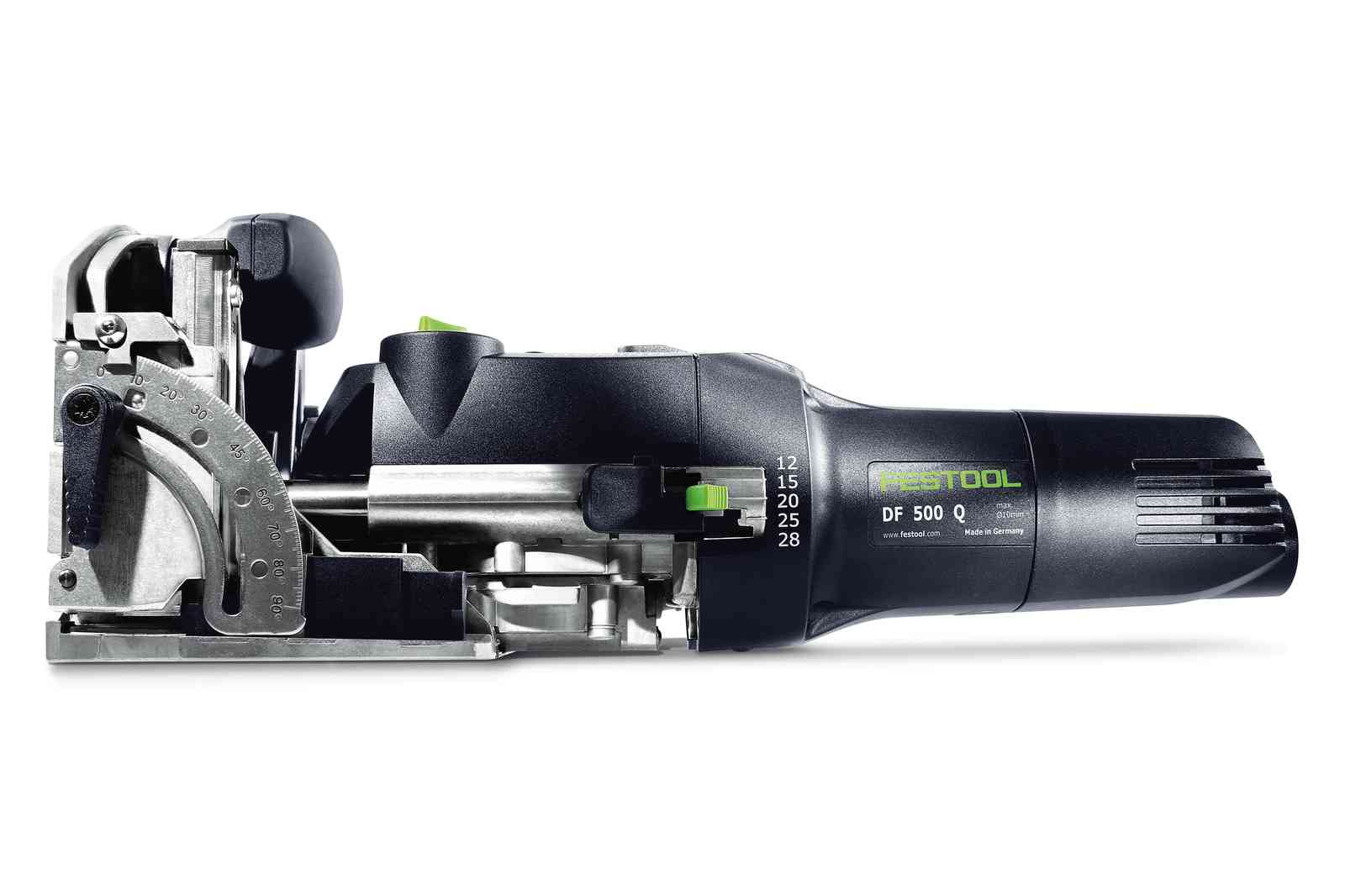

Festool 576419 Domino DF 500 Mortise and Tenon Joiner

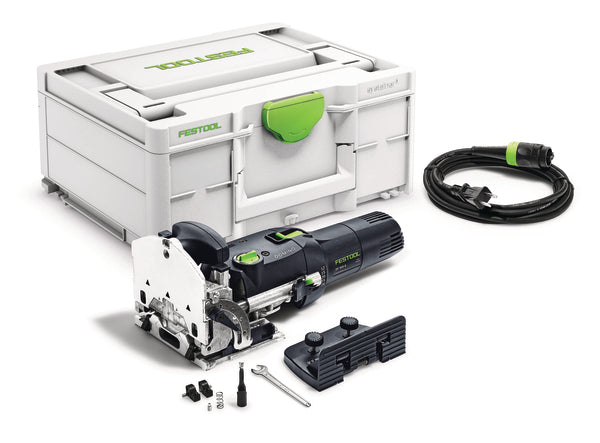

The Domino DF 500 is now only offered in a Set version which includes the trim and cross stops.

Joining has always been a slow, difficult process. Never again, thanks to the Festool Domino joining system. The system consists of the Domino joiner and pre-fabricated, beech and sipo Domino tenons. The Domino joiner, with its revolutionary cutting method, simple indexing features and adjustable mortise sizing, makes flawless mortises every single time. The Domino tenon is equally as impressive - it is 100% rotation-proof and far stronger than either biscuits or dowels. It also has a large gluing surface area for extra strength.



  • Cutter spindle speed: 24,300 rpm
  • Domino slot cutter diameter: 5 mm cutter included / 4, 6, 8, 10 mm
  • Miter routing: 0-90 degree; stop positions at 0, 22.5, 45, 67.5, & 90 degrees
  • Movable stepped stop: (16/20/22/25/28/36/40 mm)
  • Power consumption: 420 watt
  • Routing depth stop: (12/15/20/25/28 mm)
  • Routing height adjuster with scale: (5-30 mm)
  • Weight: 7 lbs (3.2 kg)

Features & Benefits

Patented Routing Principle

The spiral cutter rotates and oscillates to create perfect mortises.

Mortise Width Adjustment

Adjusting the width of the mortise allows for easier alignment when joining panels.


With an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the Domino joiner enables precise mortise placement and spacing.

Pivoting Fence

Fence creates angled mortises from 0-to-90 degrees with positive stops at 22.5, 45, & 67.5 degrees.

Depth Control

Quick, precise adjustment for five different mortising depths, relative to the size of the tenon required for the application.

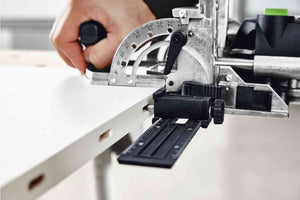

Stepped Height Stop

7 different step positions for different material thicknesses for fast and easy fence height adjustment.

Dust Extraction

Your mortises are clean and ready for glue when the Domino is used in combination with a dust extractor. Proper dust extraction greatly extends cutter life.

Carbide Tip Spiral Bit

Durable, long-lasting bit withstands 5,000-14,000 joints depending on material.

Rapid Bit Change

Means you can change a bit in under 30 seconds to match desired tenon size.
