A whole new standard for portable circular saws
Millions of saws do not lie: The TS has always stood out with its absolute precision cuts, maximum power and extreme durability. The usual reliability remains – but the working speed is unprecedented: The TS 55 now saws at up to twice the speed. In addition, the new generation of cutting blades guarantees perfect cutting quality with maximum cutting performance. With accessories, such as guide rails and the angle stop, or sophisticated and proven details, such as the splinter guard and extraction system perfectly matched to the machine, the TS 55 provides excellent work results and a top-class sawing system – for every challenge.
Concentrated torque and up to twice as fast work progress with an increased saw blade service life
Top-class sawing system thanks to a variety of accessories
The cutting edge from 90° to 47° remains unchanged even when the saw bevels
Riving knife for safer work and simple positioning in existing joint
Angle adjustment with undercut function from -1° to 47°
Virtually splinter-free on both sides thanks to attachable splinter guard

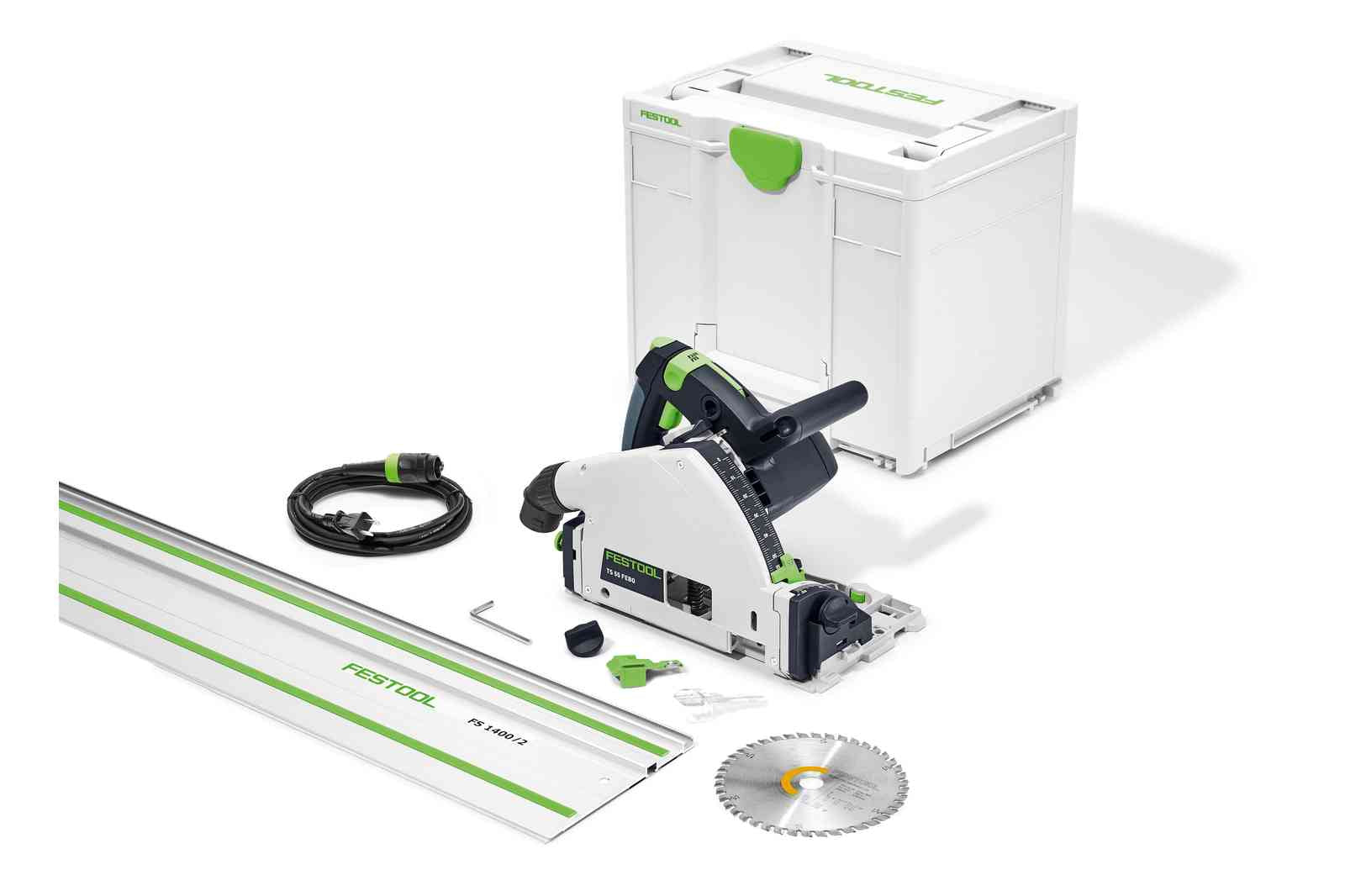

- 42-tooth carbide blade
- Splinterguard (includes 1, purchase additional 5-pack)
- Sight window
- Hex Key
- All packed in SysGen3 M337 Systainer

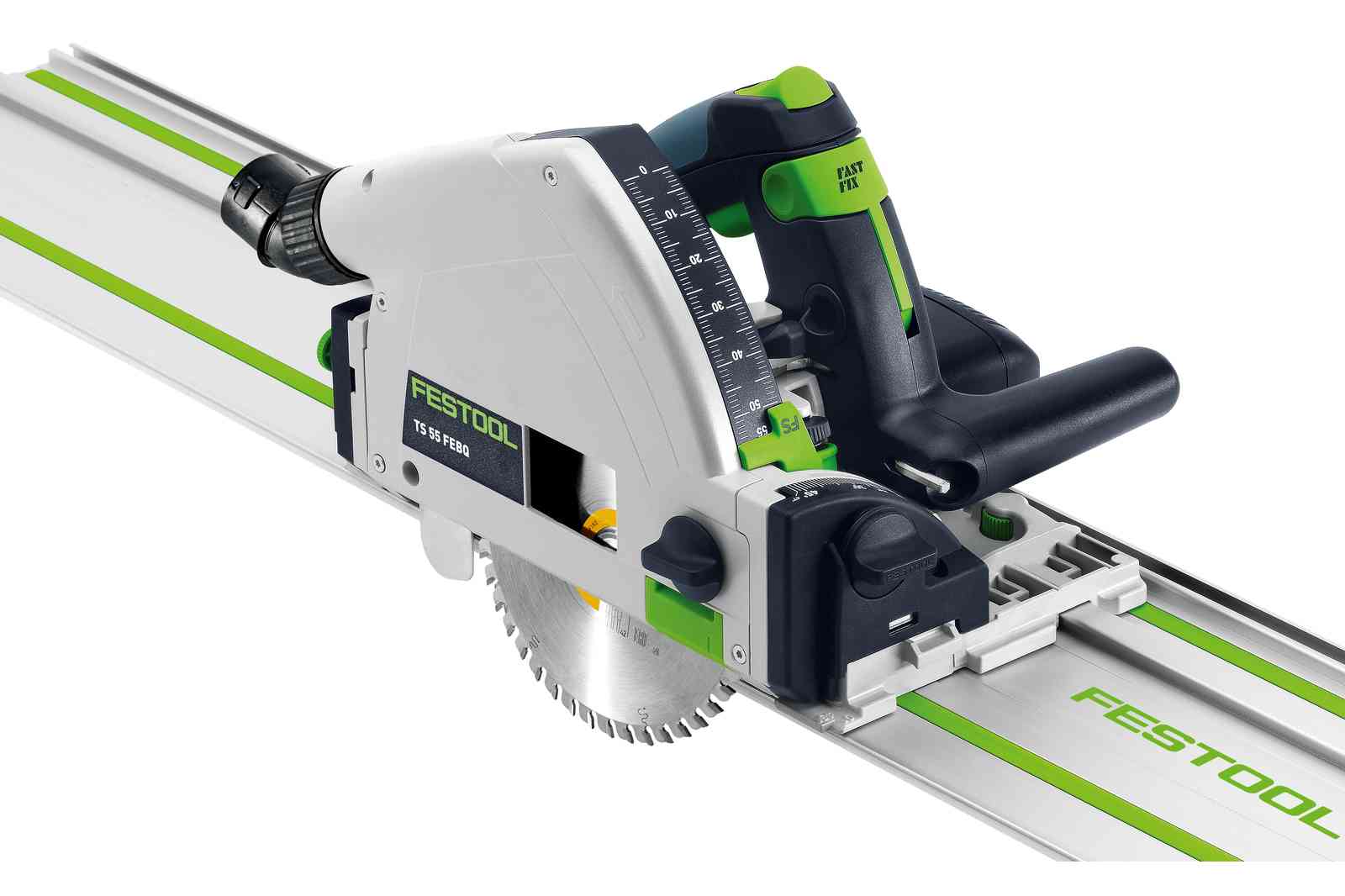

- Guide Rail FS 1400
- Arbor size: .787" (20 mm)
- Bevel cuts: -1 to 47 degrees
- Cutting depth on guide rail: 1-15/16" straight down and 1-7/16 at 45 degrees
- Cutting depth without guide rail: 2-1/8" straight down
- Power consumption: 1200 watts / 10 amps 120 v AC
- Idle engine speed: 2,000 - 5,800 rpm
- Saw blade diameter: 6-1/4" (160 mm)
- Angular range: -1 - 47 °
- Cutting depth: 0"- 2-1/8" (0-55mm)
- Cutting depth at 45 °: 1-11/16" (43mm)
- Dust extraction connection diameter: 1 1/16" - 1 7/16" (27/36mm)
- Weight: 9.92 lbs (4.5kg)
Features & Benefits
Improved safety, easy handling
The spring-loaded riving knife runs behind the saw blade to prevent it from binding and makes it easier to insert the blade in existing joints.
The concentrated torque of our track saw enables work progress at up to twice the speed with an increased saw blade service life. Our new generation of saw blades offer impressive cutting performance and perfect cut quality.
Perfect cuts reduce the need for reworking
With the clip-on splinter guard combined with the guide rail, it is possible to achieve a splinter-free cut on both sides of the blade.
Precise and clean working with a system
Combined with our guide rails, a wide range of saw blades, the adapted extraction system, saw table, angle stop, and splinter guard, we offer a top-class sawing system.
Perfect cuts, even at a bevel
The TS 55 enables precise work. The splinter-guard from 90° to 47° remains unchanged even when the saw bevels.
Bevel setting from -1 ° to 47°
The saw has preset bevels at 0° and 45°. Undercuts are also possible with the extended adjustment option from -1° to 47°.
Best orientation for plunge cuts
Transparent sliding viewing window and the additional markings for the starting and endpoint provide a good view of the saw blade.
The smooth housing allows users to make cuts up to the edges and close to the wall (12 mm, ~1/2").
