Precise sawing to go. The cordless table saw in Systainer format.

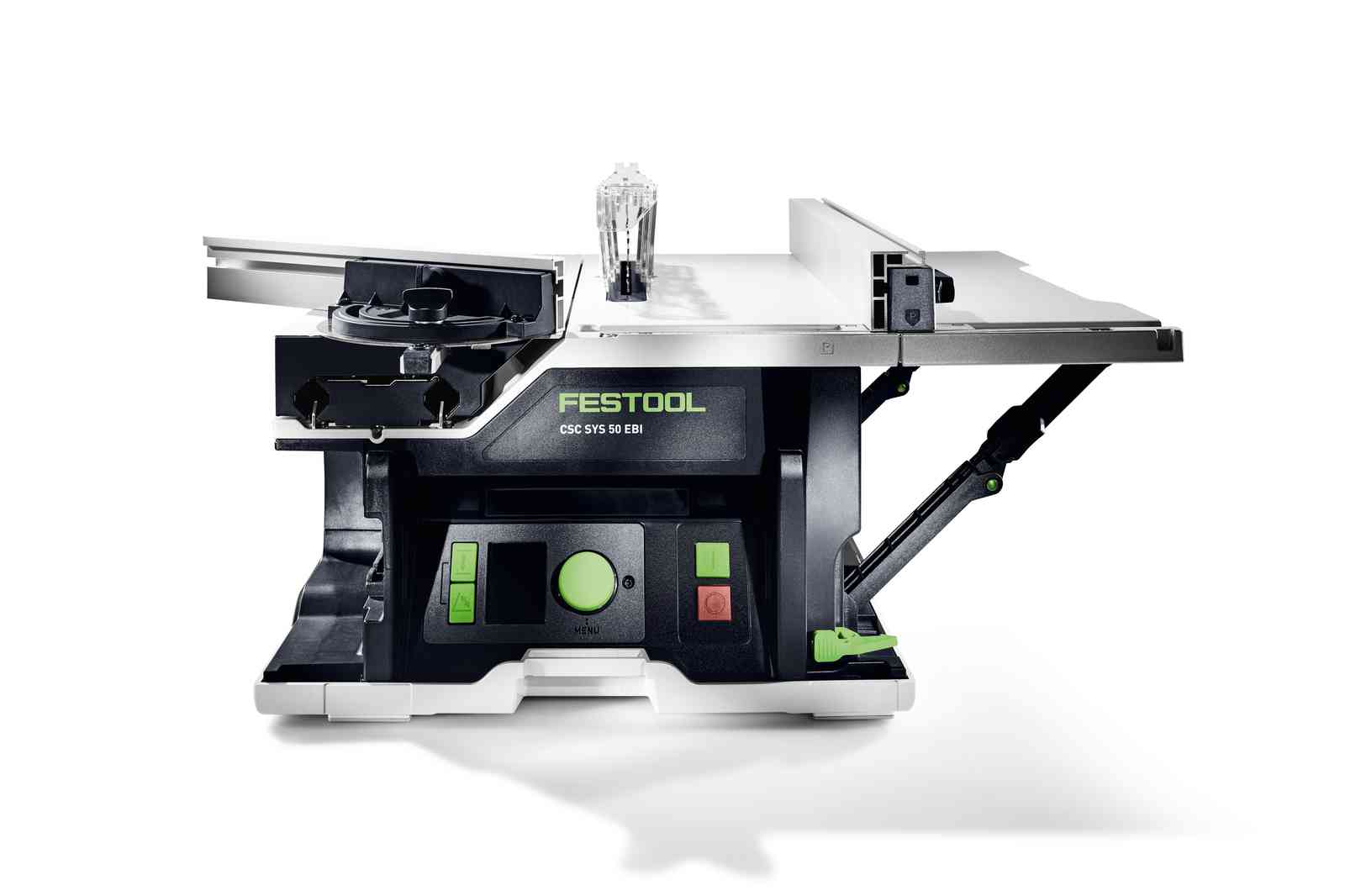

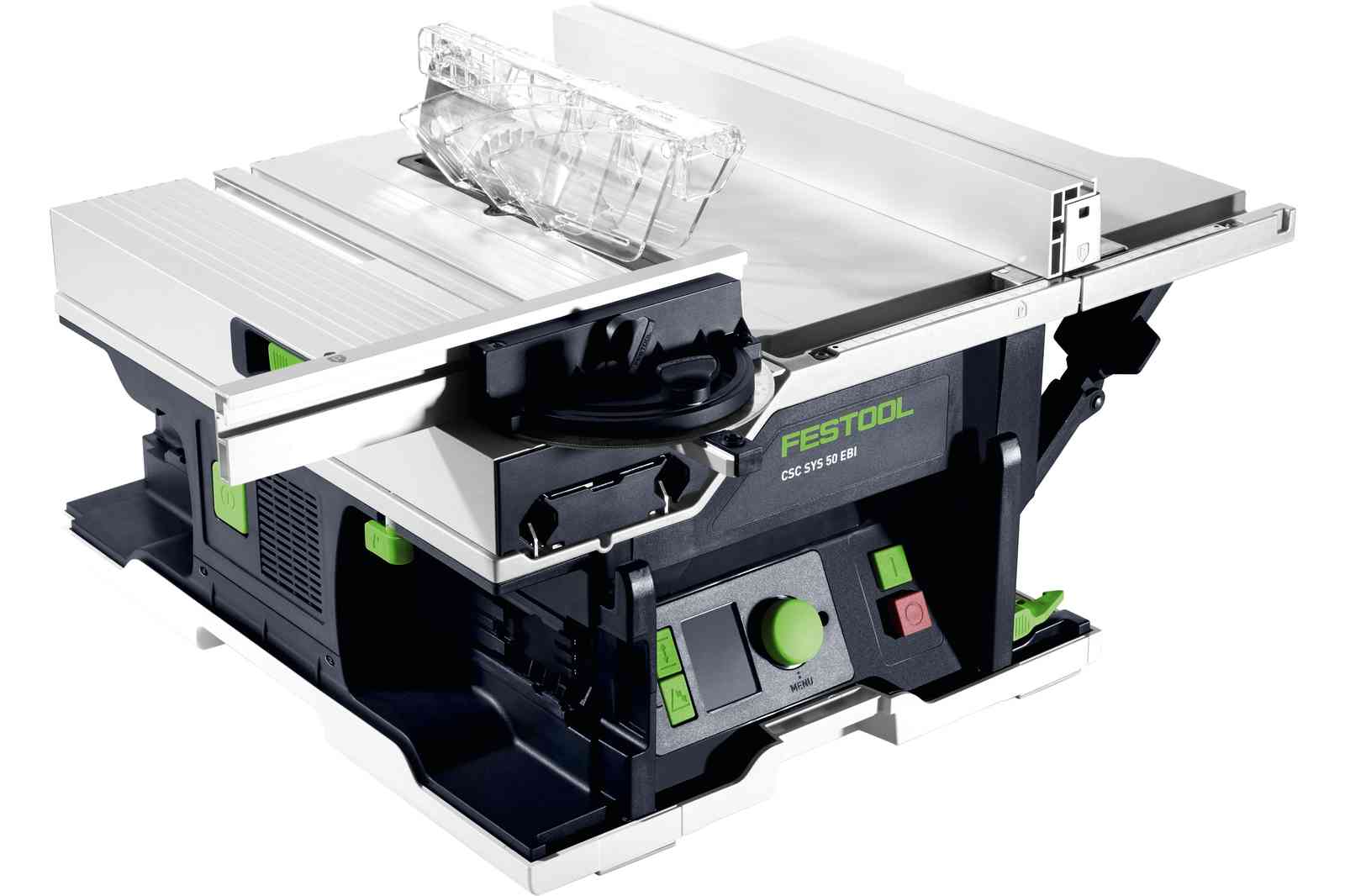

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make rip cuts of up to 11" (280 mm), cross-cut widths of up to 17-3/4" (450 mm), and bevel cuts of -10° to 47°. The unique digital operation produces results with maximum precision, down to accuracies within a tenth of a millimeter. The 2x18 volt dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with corded machines. Together with the UG-CSC-SYS underframe, you have the perfect worktable immediately on hand, and transport from the vehicle to the point of use thus succeeds effortless. The CSC SYS 50: Precise sawing to go.
Versatile: rip cuts of up to 11", cross-cut widths of up to 17-3/4", and bevel cuts of -10° to 47°
Practical: At a cutting height of up to 1-7/8"

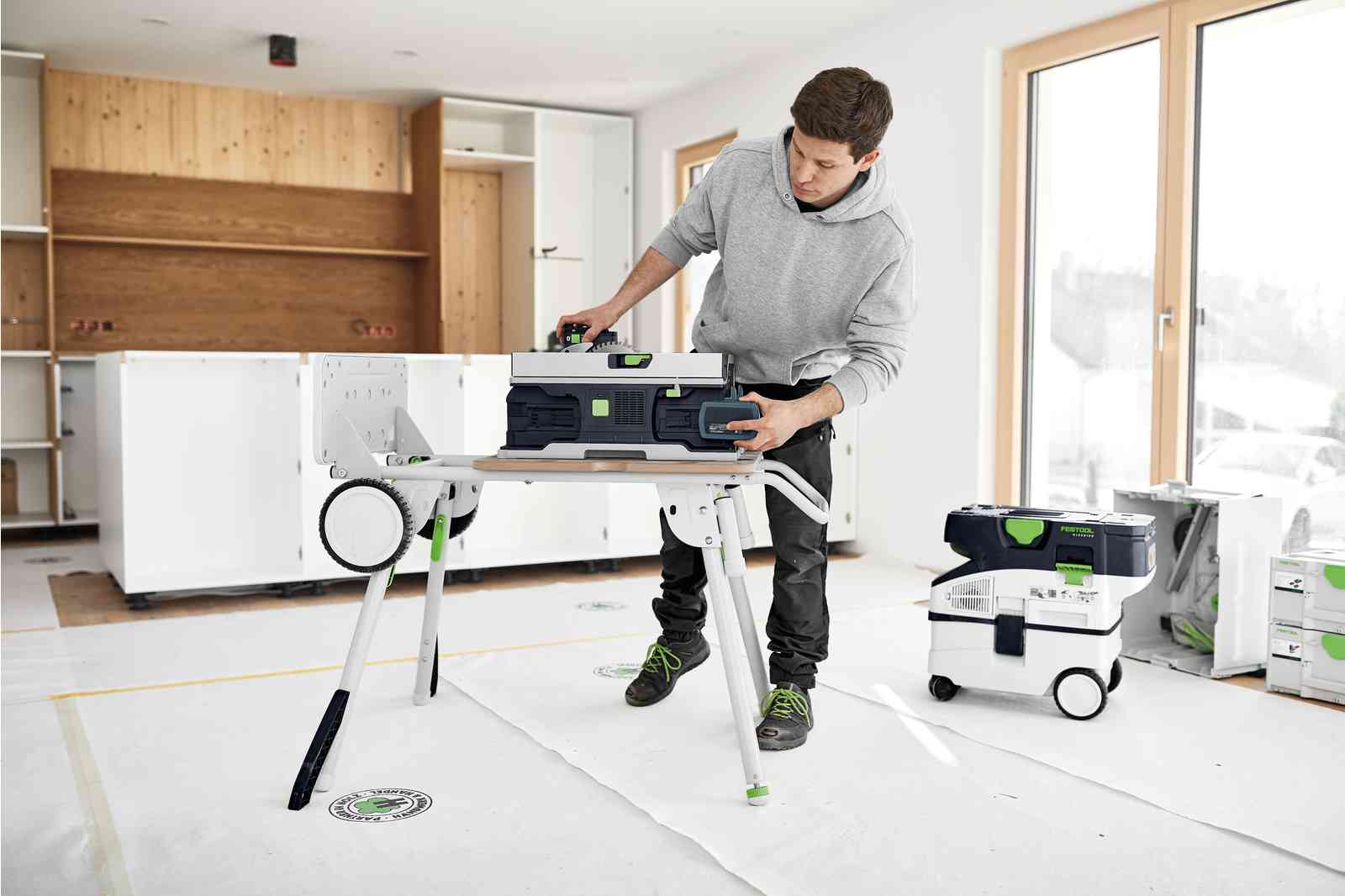

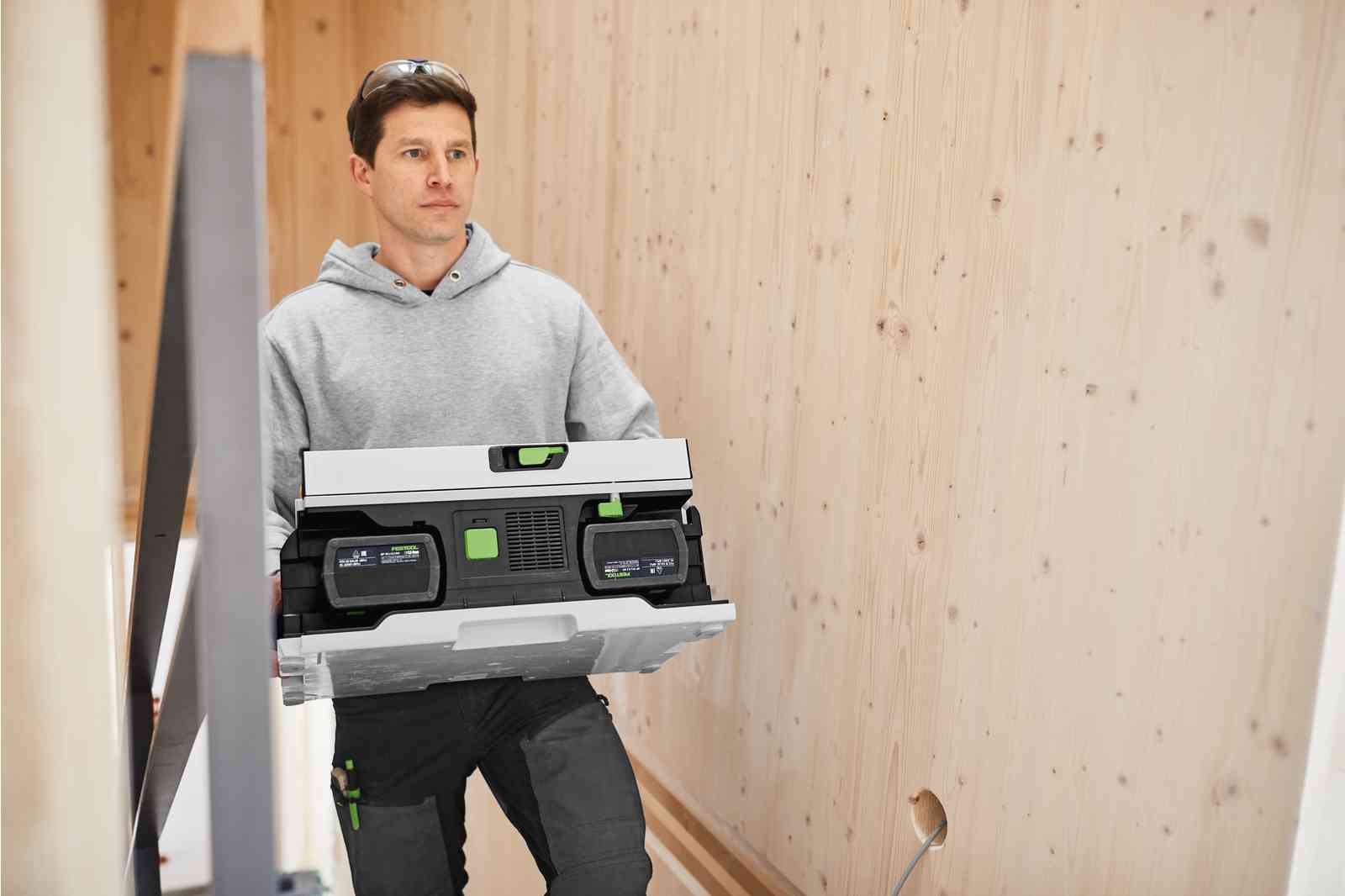

Compact and mobile: Can be transported with one hand in the practical Systainer format. Even easier with the UG-CSC-SYS underframe.
Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimeter.
Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Reproducible cuts are ensured.
Convenient: Four saw blade positions can be saved and selected through the digital display.
Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For miter angles between -70° and +70°
Absolutely judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results
Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah & higher) ensures a long operating performance
Durable: The brushless EC-TEC motor is long-lasting, robust and maintenance-free
Work appropriately for the material: With saw blades for various material types; speeds appropriate for the material can be preselected via the digital display
Dust-free: Chip collection bag for dust-free work when not using a dust extractor

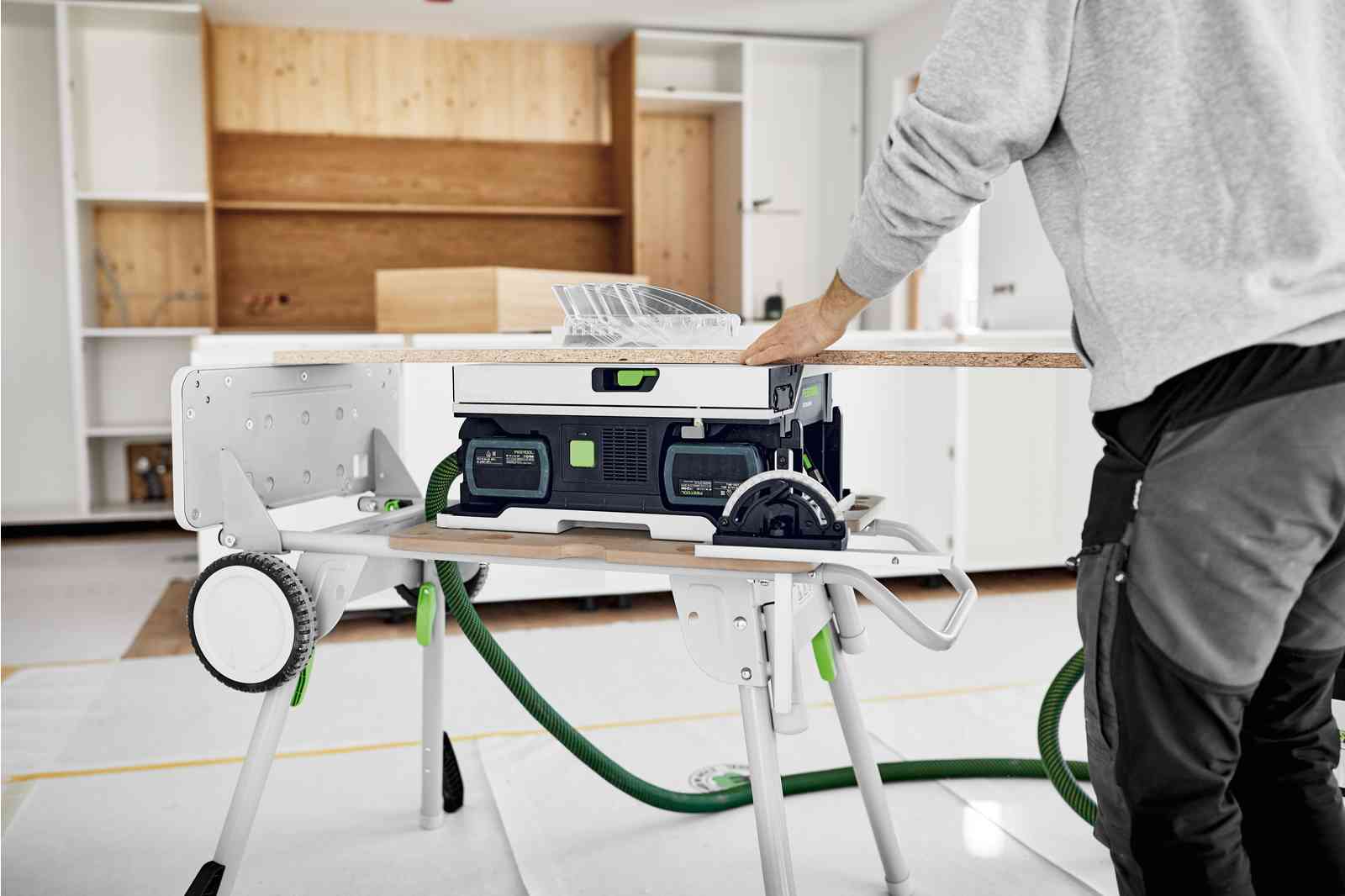

Healthy working with a system: Ideal also in combination with the Festool cordless extractors
Compatible: Fits together with the entire Festool Systainer system

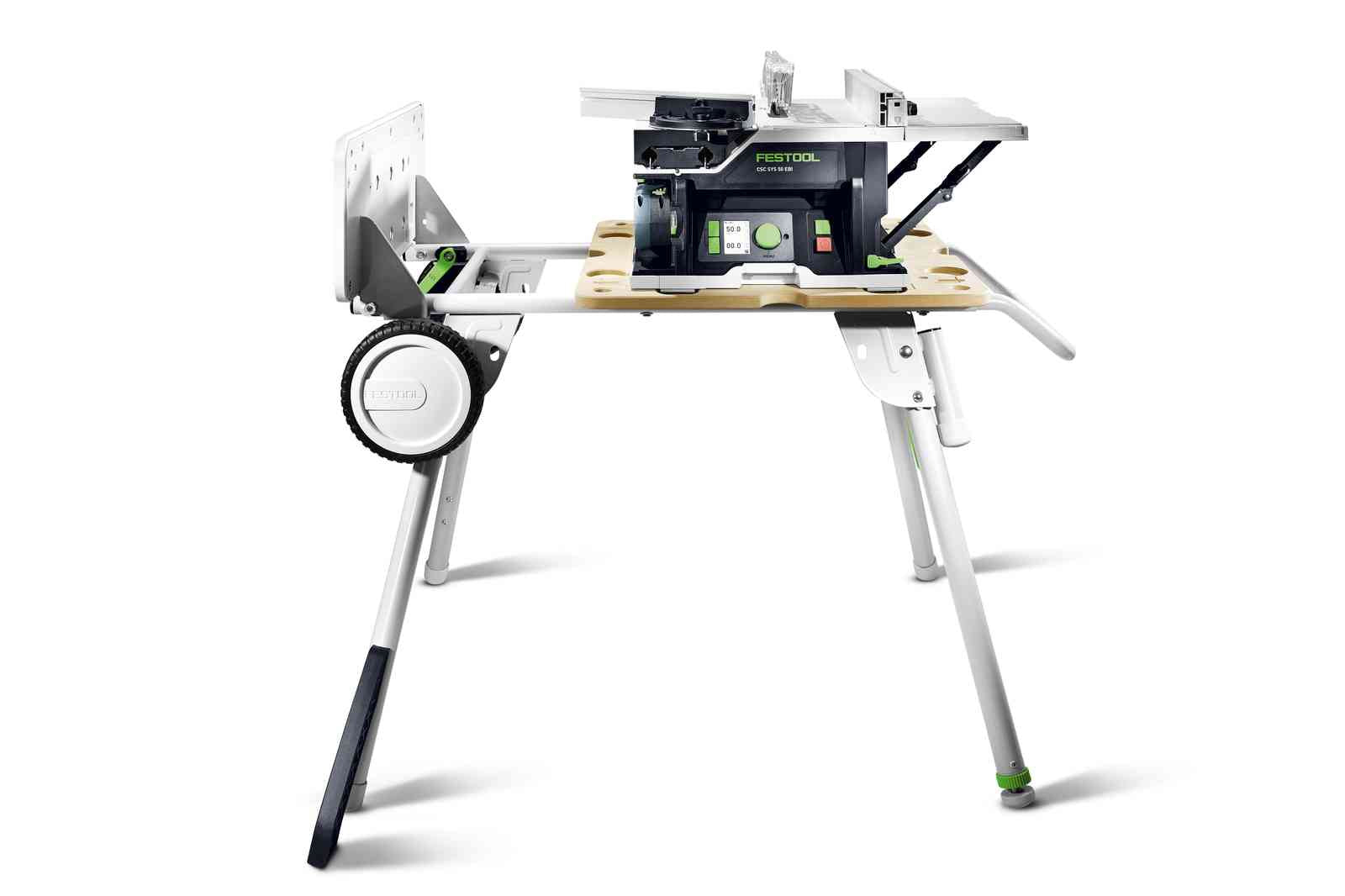

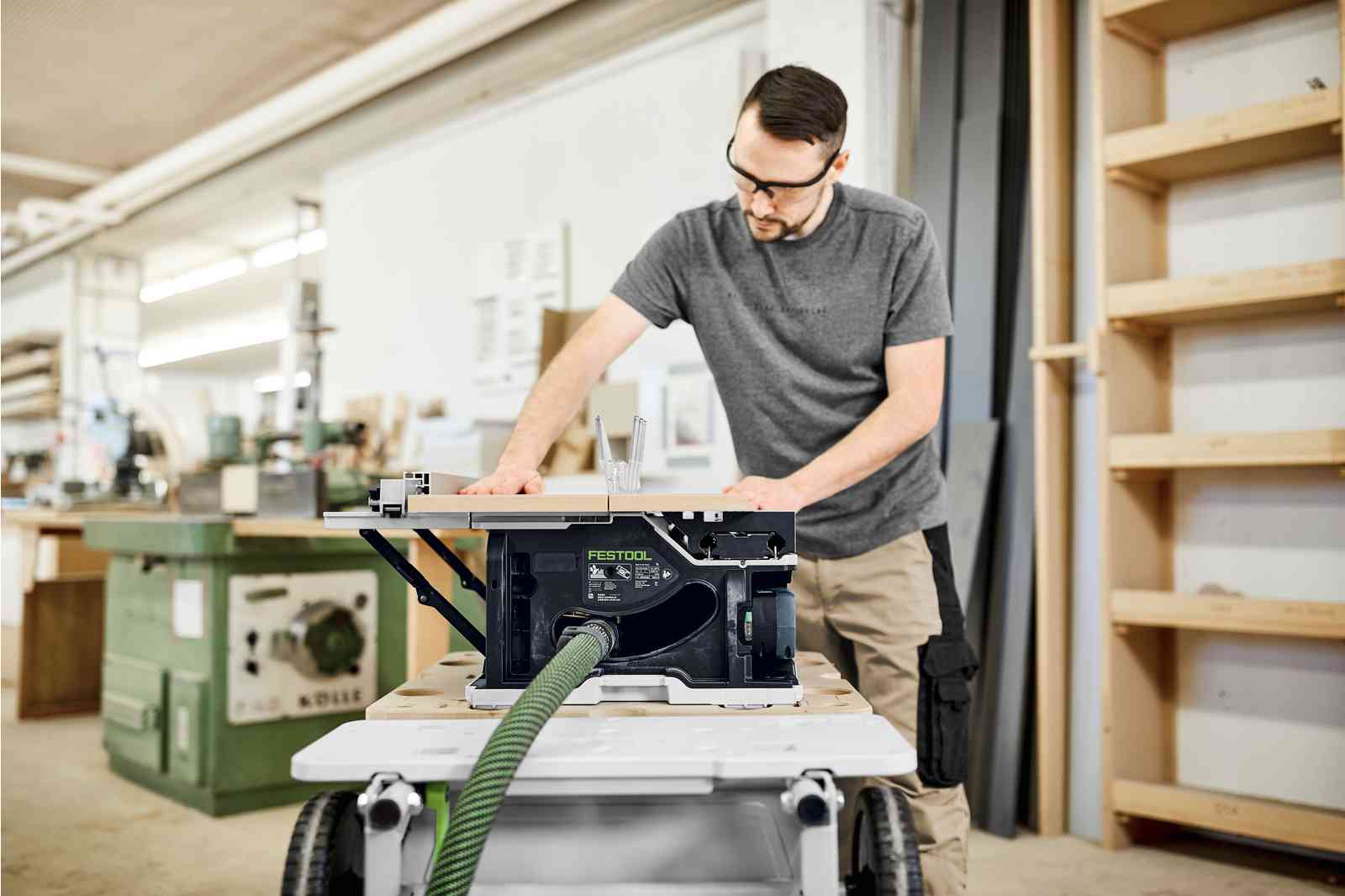

Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
Battery compatibility: Two 18 volt (4.0 Ah & higher)
Idle engine speed: 4500 - 6800 RPM
Arbor: 20 mm
Bevel cuts: -10 to 47 degrees
Cutting height at 0°: 0 to 1-7/8" (0 to 48 mm)
Cutting depth at 45°: 0 to 1-11/32" (0 to 34 mm)
Cutting height at -10°: 13/16" to 1-1/4" (21 to 32 mm)
Miter angles: 0 to 70 degrees
Parallel cut width: 11" (280 mm)
Tabletop height: 11" (280 mm)
Dimensions (L x W x H): 20-5/32" x 15-19/32" x 11-21/32" ( 512 x 396 x 296 mm)
Dust extraction connection diameter: 1-1/16" (27 mm), to attach 36 mm hose use dust port #202096
Weight (excludes batteries): 45 lbs (20.2 kg)
Features & Benefits
Incredibly compact. Extremely versatile.
So compact, it fits into a Systainer. Portable and precise, the CSC SYS 50 cordless table saw produces shop-quality cuts on the jobsite. Impressively versatile, with parallel cuts of up to 11“ (280 mm), a cross-cut width of up to 17-3/4“ (450 mm) and bevel cuts of -10° to 47°.
Precise cuts at the press of a button.
You can set the height and angle accurately to a tenth of a millimeter (1/256“) with unique digital operation—more exact than with any tape measure, with 100% repeat accuracy. Even the most demanding cuts are a breeze with unprecedented precision. The robust guidance system is made up of a rip fence, a miter gauge and sliding table.
As powerful as a corded saw.

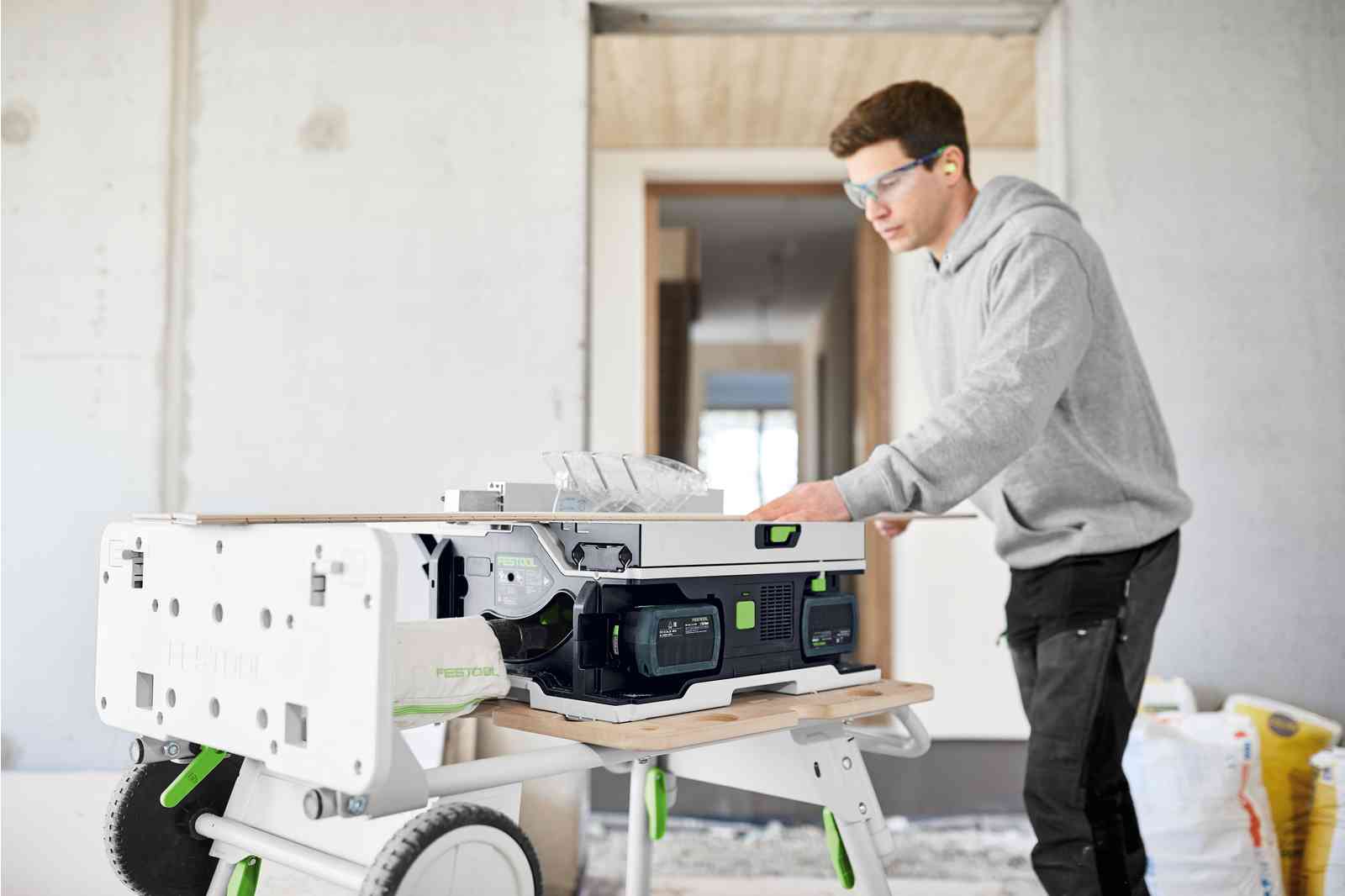

Even for rip cuts in solid wood, you won‘t notice any difference in power, compared with corded machines. The 2x18 V dual- battery system, in combination with the brushless EC-TEC motor, will impress you with maximum power and torque.
Made for interior finishing
With a guaranteed cutting height of 1-7/8“ (48 mm), all applications typical in interior finishing can be carried out.
More precise than any tape measure

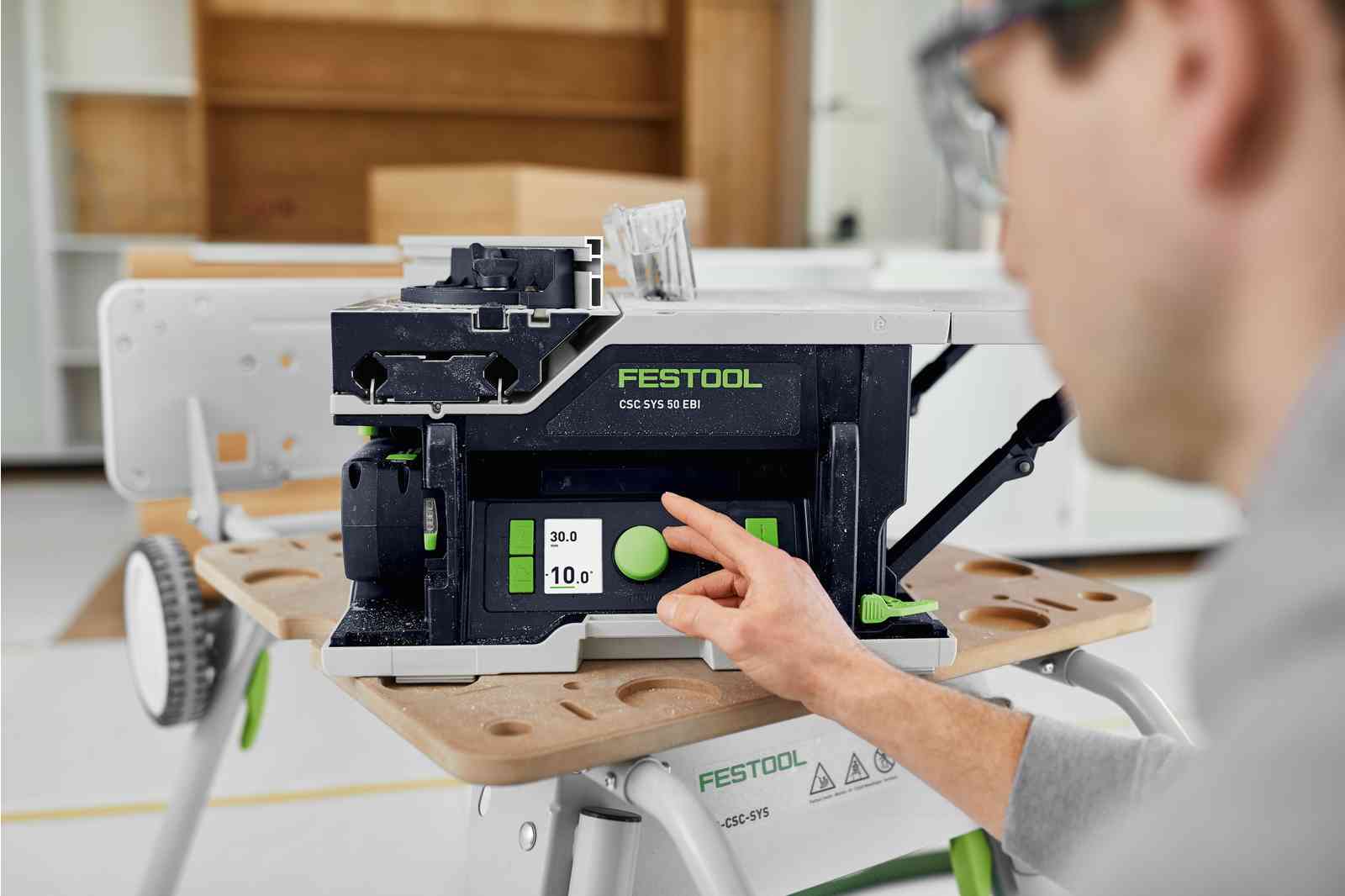

The desired sawing height and angles are accurately entered to within 0.1 mm (1/256“) via the digital display and the dial. This adjusts the saw blade automatically.
The display can be set to your local language.

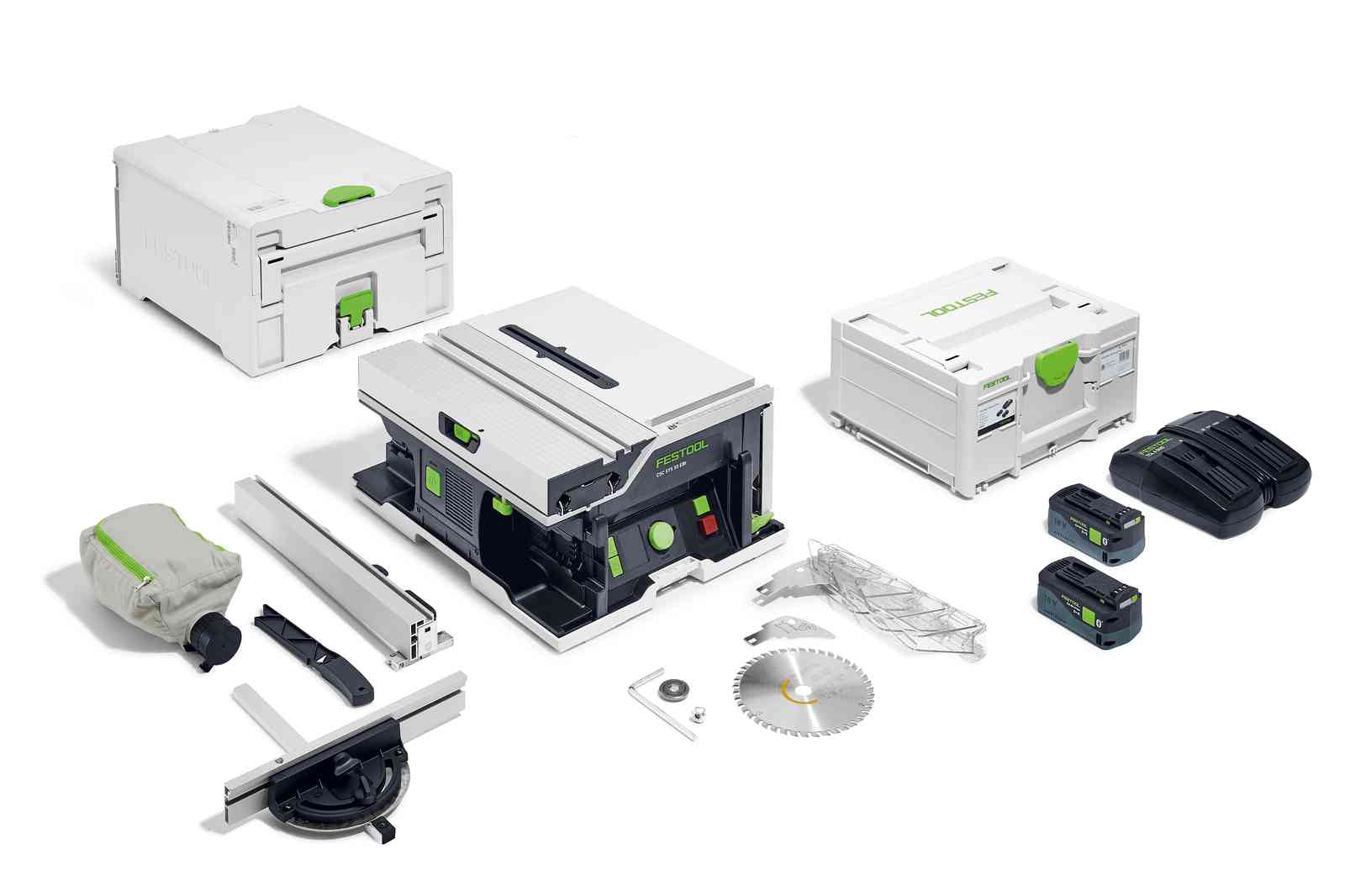

Systainer: Transport and protection
The Systainer hood is easily placed over the cordless table saw, allowing for easy transportation and protection.
