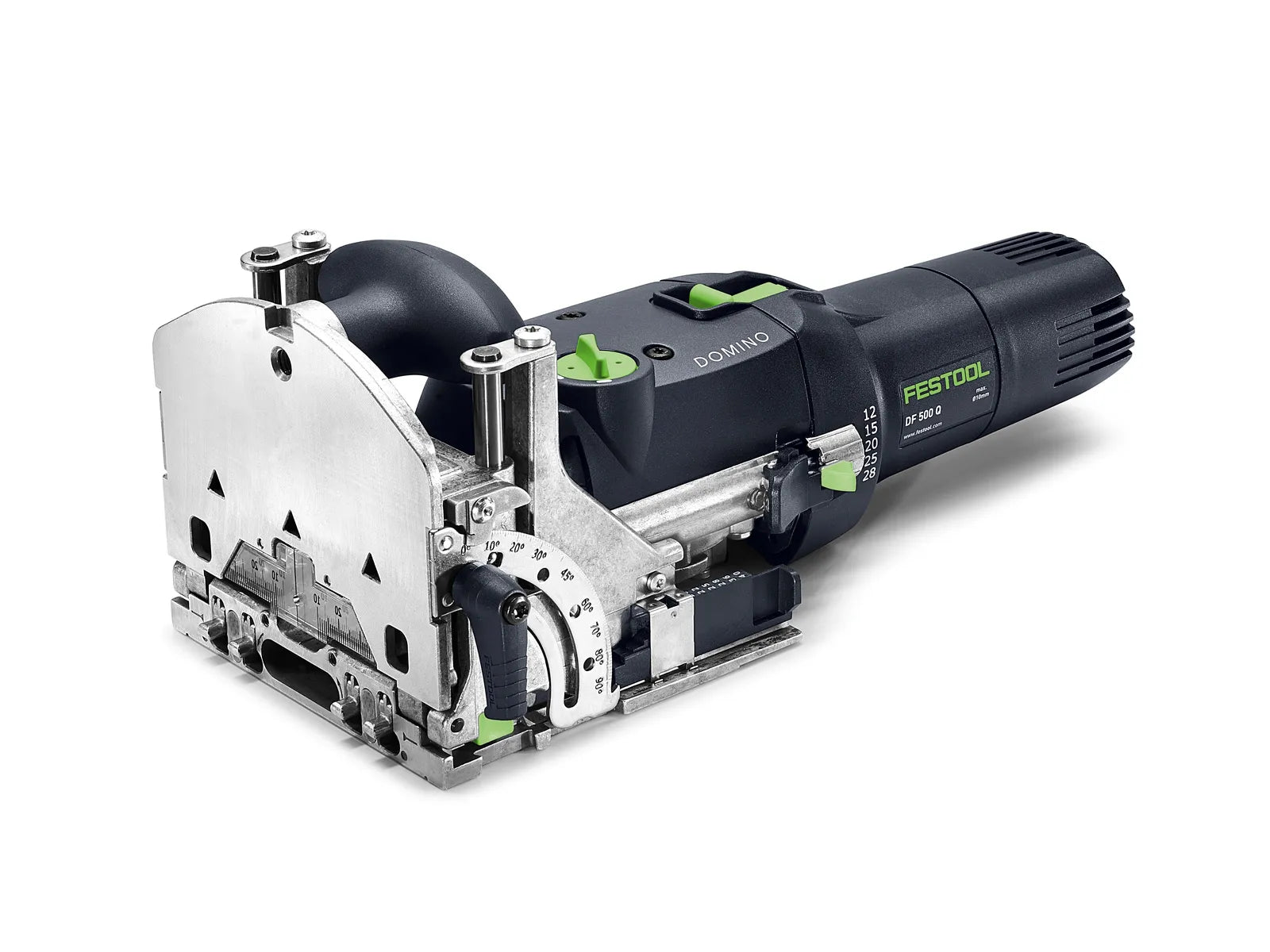

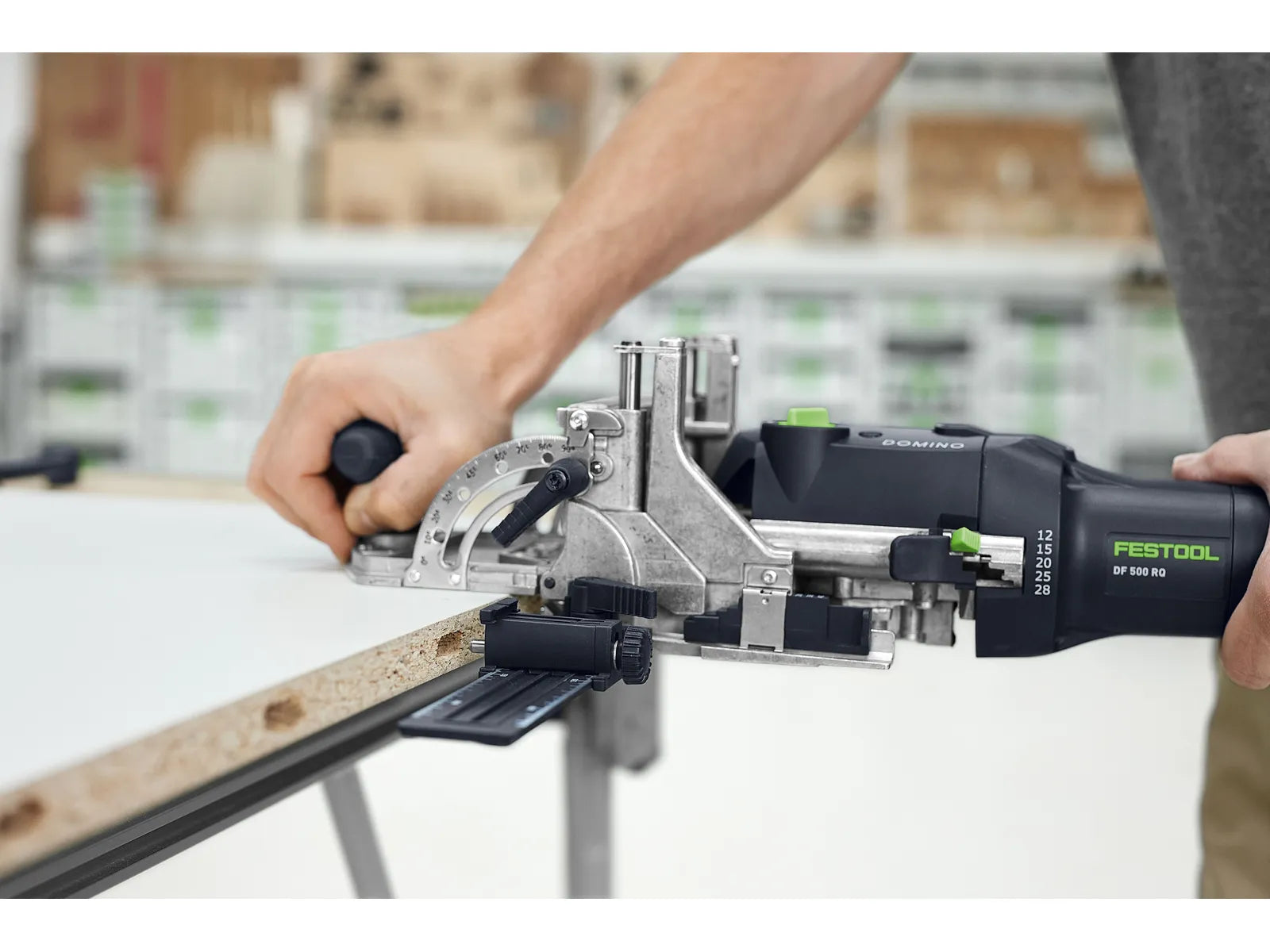

Festool 578544 Domino DF 500 R Mortise and Tenon Joiner SET
$1,359.00
New! Ships: 3/25/26
Connect with precision, stability and versatility: Simply DOMINO.

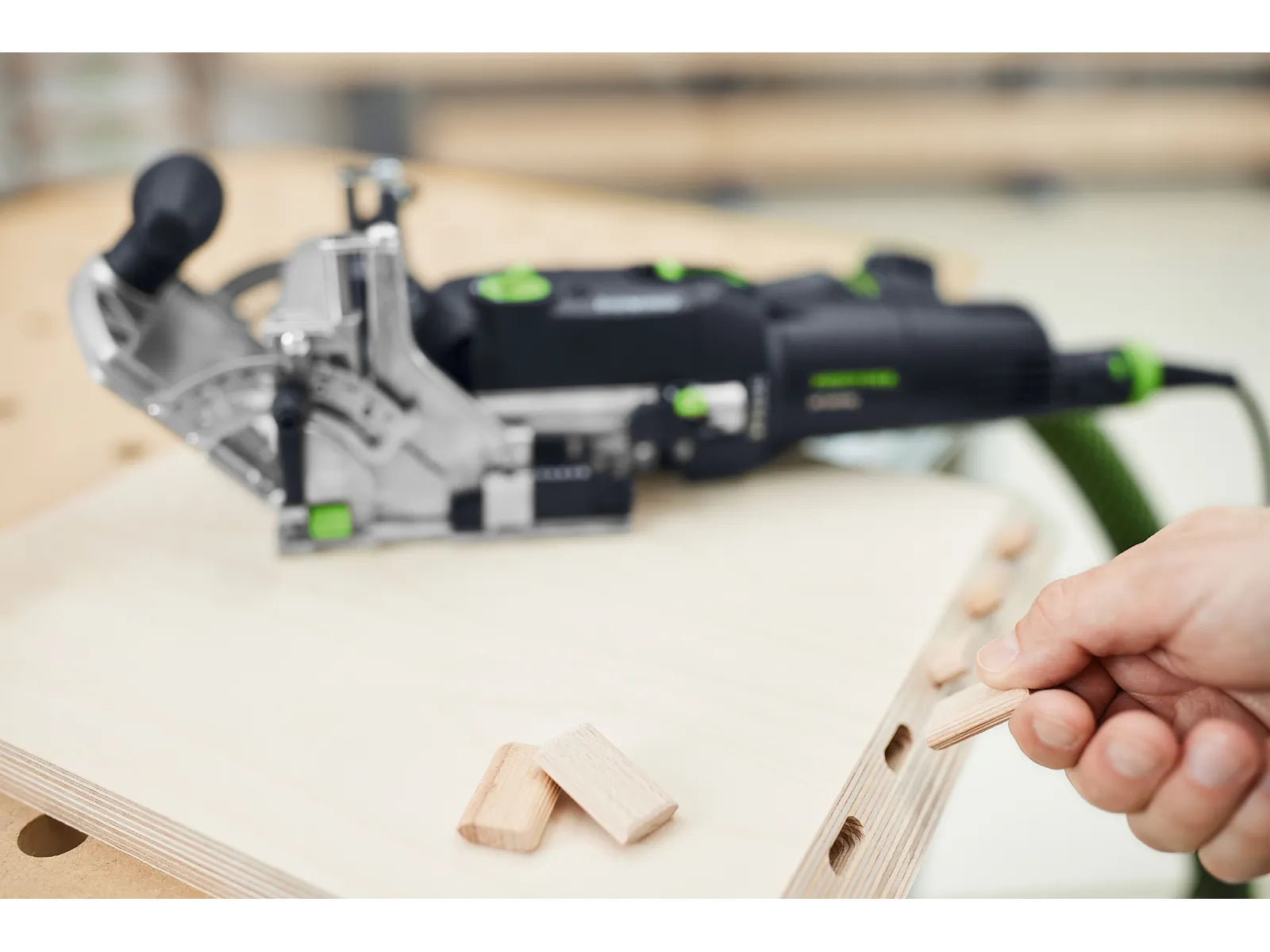

Every wood joint has its perks. The DOMINO jointing system, made up of the joining machine and DOMINO dowels, brings them all together. The unique pendulum routing action of the DOMINO carves out precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slot and mortise joints with the flexibility of flat dowels. Perfect for both delicate and hefty workpieces, whether inside or out.
Upgraded fence with easy-to-read markings, a quick-release lever, and a solid double-column design. For fast, accurate setup, it includes four stop pins that pop in and fold away—no need to measure or mark.
- Precise: One-of-a-kind pendulum milling principle for accurate, effortless work.
- Quick and easy: Built-in stop pins for repeating dowel placement.
- Stable: Super stable and twist-proof joints thanks to the unique shape of the DOMINO dowel.
- Versatile: DOMINO plugs come in various sizes from 4 x 20 mm to 10 x 50 mm, and in two types of wood for indoor and outdoor use.
- Sorted: The routing depths are just right for the dowel lengths and panel materials.
- Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again.
- System: Accessories are a perfect fit for the whole DOMINO system.

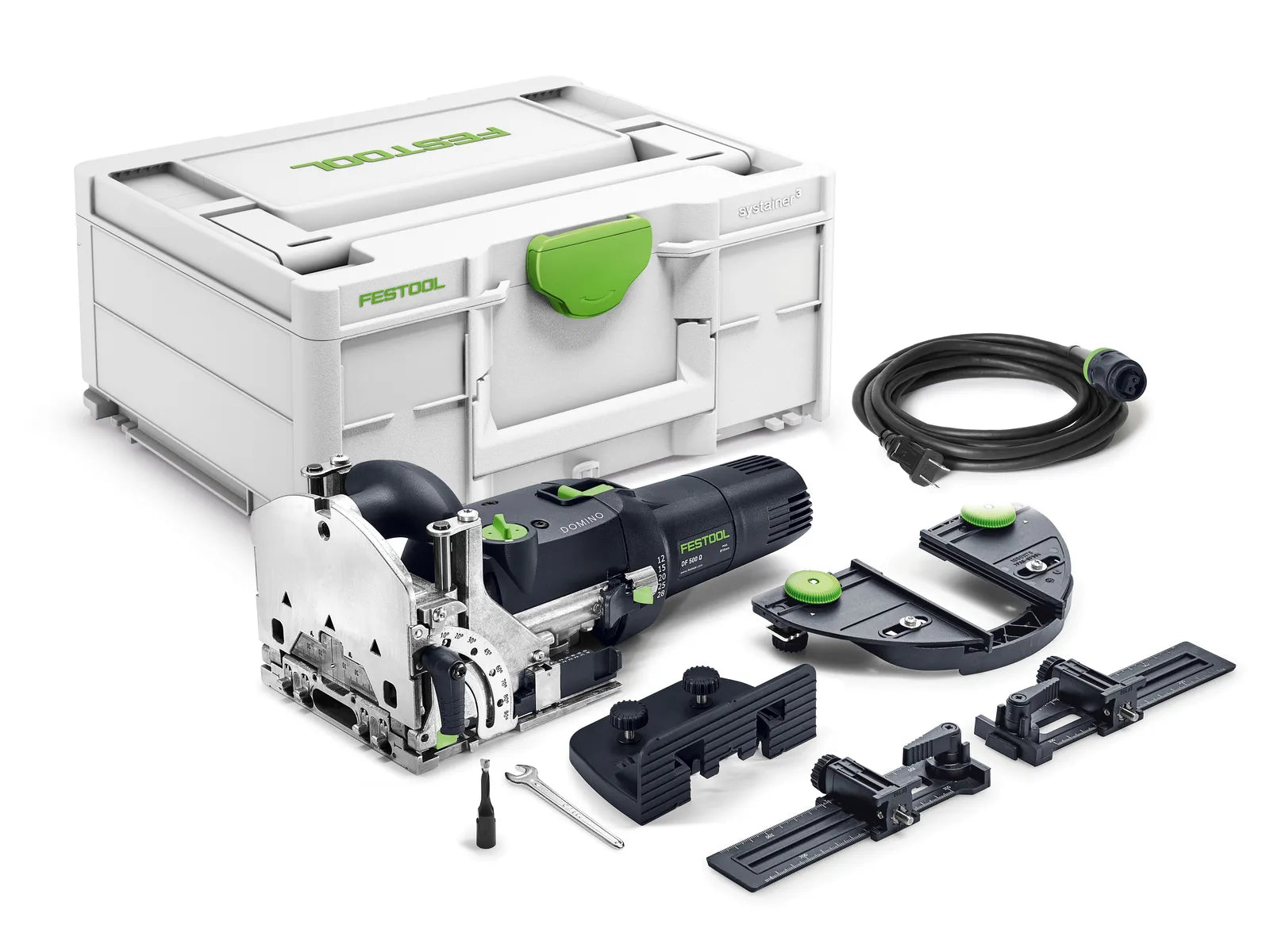

Includes
- DOMINO Cutter D5
- Cross Stop
- Trim Stop
- Support Bracket
- Wrench
- Plug-it Power Cord
- All packed in SysGen3 M187 Systainer
Specifications
- Cutter spindle speed: 25,500 rpm
- Domino slot cutter diameter: 5 mm cutter included / 4, 6, 8, 10 mm cutters sold separately
- Miter routing: 0-90 degree
- Power consumption: 420 watt
- Routing depth stop: (12/15/20/25/28 mm)
- Routing height adjuster with scale: (5-30 mm)
- Weight: 7.72 lbs (3.6 kg)
Features & Benefits
Patented Routing Principle
The spiral cutter rotates and oscillates to create perfect mortises.
Mortise Width Adjustment
Adjusting the width of the mortise allows for easier alignment when joining panels.
Positioning
With an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the Domino joiner enables precise mortise placement and spacing.
Pivoting Fence
Fence creates angled mortises from 0-90 degrees with positive stops at 22.5, 45, & 67.5 degrees.
Depth Control
Quick, precise adjustment for five different mortising depths, relative to the size of the tenon required for the application.
Stepped Height Stop
Multiple step positions for different material thicknesses for fast and easy fence height adjustment.

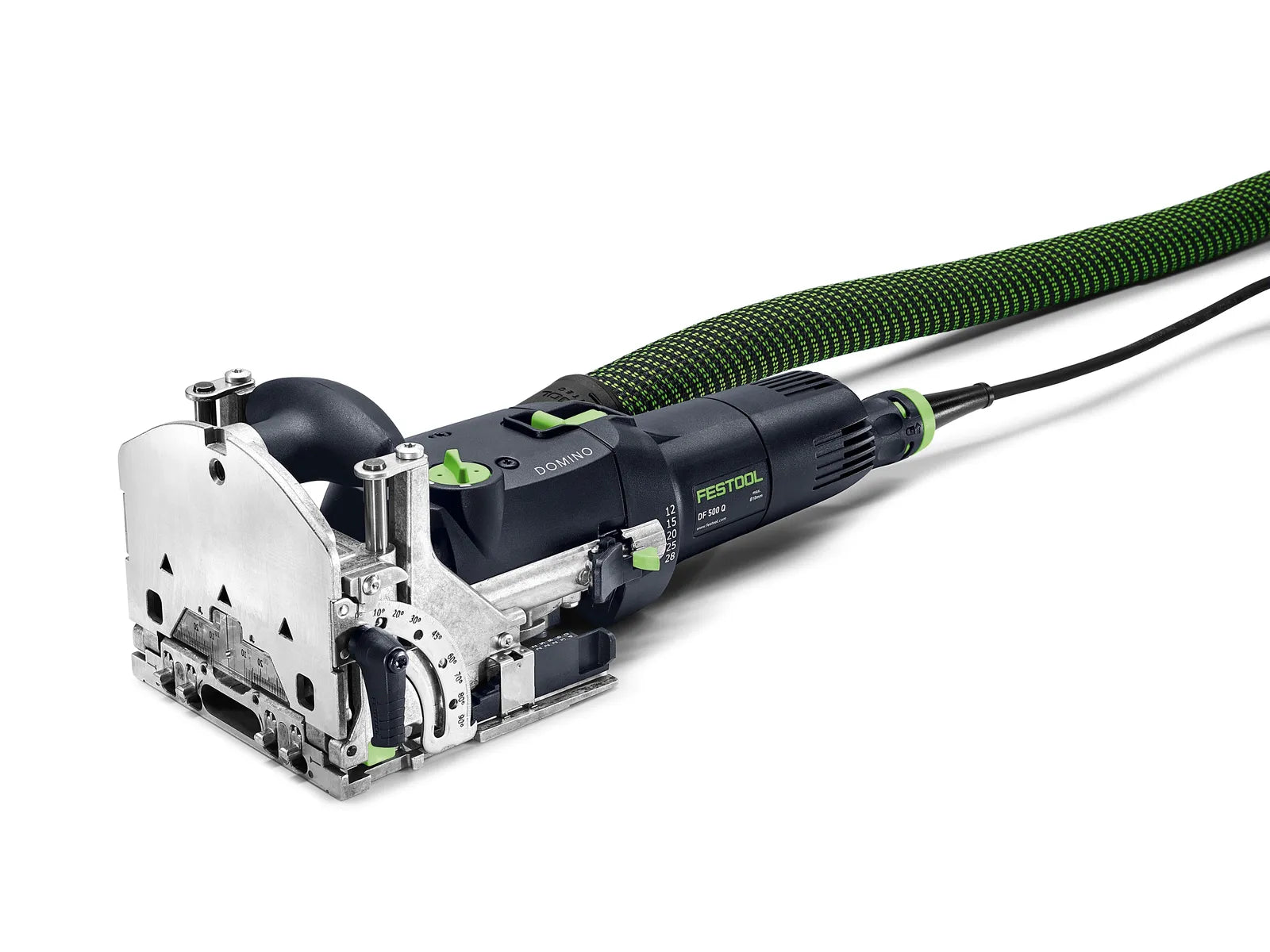

Dust Extraction
Your mortises are clean and ready for glue when the Domino is used in combination with a dust extractor. Proper dust extraction greatly extends cutter life.
Carbide Tip Spiral Bit
Durable, long-lasting bit withstands 5,000-14,000 joints depending on material.
Rapid Bit Change
Means you can change a bit in under 30 seconds to match desired tenon size.
