Save when buying as part of VAC SYS System or VAS SYS System SET.

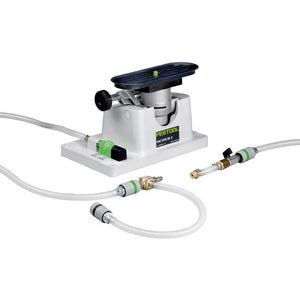

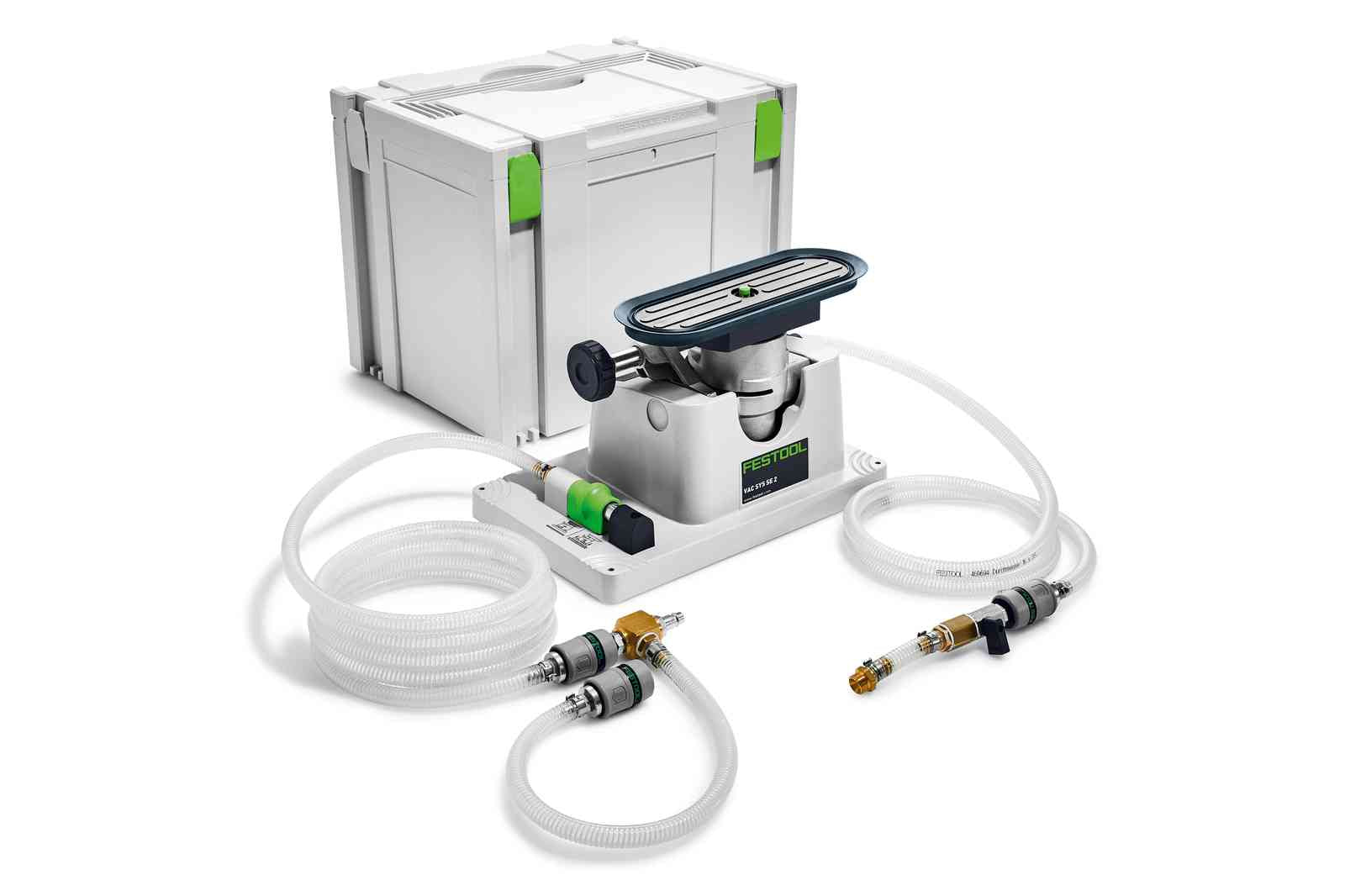

Work more efficiently with the new VAC SYS System. With proven vacuum-based suction clamping, the VAC SYS provides a highly effective and ergonomic work platform for nearly any project. Effectively clamp material or a workpiece for effortless machining and finishing while protecting delicate surfaces from clamp damage. Each Clamping Module is equipped with a suction base that adheres to non-porous surfaces with a quick release valve, and can adapt to many surface sizes based on interchangeable Vacuum Pods (available separately).
Dimensions (in mm)
|Holding Force 90° (Vertical)||Holding Force 0° (Horizontal)||Maximum Dimensions||Maximum Weight|
|Round*||D215||121.2 lbs (55 kg)||198.4 lbs (90 kg)||39-5/16"X39-5/16" (1.0X1.0 m)||66.1 lbs (30 kg)|
|Oblong||275X100||77.1 lbs (35 kg)||116.8 lbs (53 kg)||47-1/4"X15-11/16" (1.2X0.4 m)||44.0 lbs (20 kg)|
|Small*||200X60||48.5 lbs (22 kg)||66.1 lbs (30 kg)||31-1/2"X7-15/16" (0.8X0.2 m)||22.0 lbs (10 kg)|
|Narrow*||277X32||46.2 lbs (21kg)||59.5 lbs (27 kg)||47-1/4"X3-5/16" (1.2X0.08 m)||17.6 lbs (8 kg)|
