Shaper SCFP1-AJ-NN BenchPilot

New!: Ships late-September

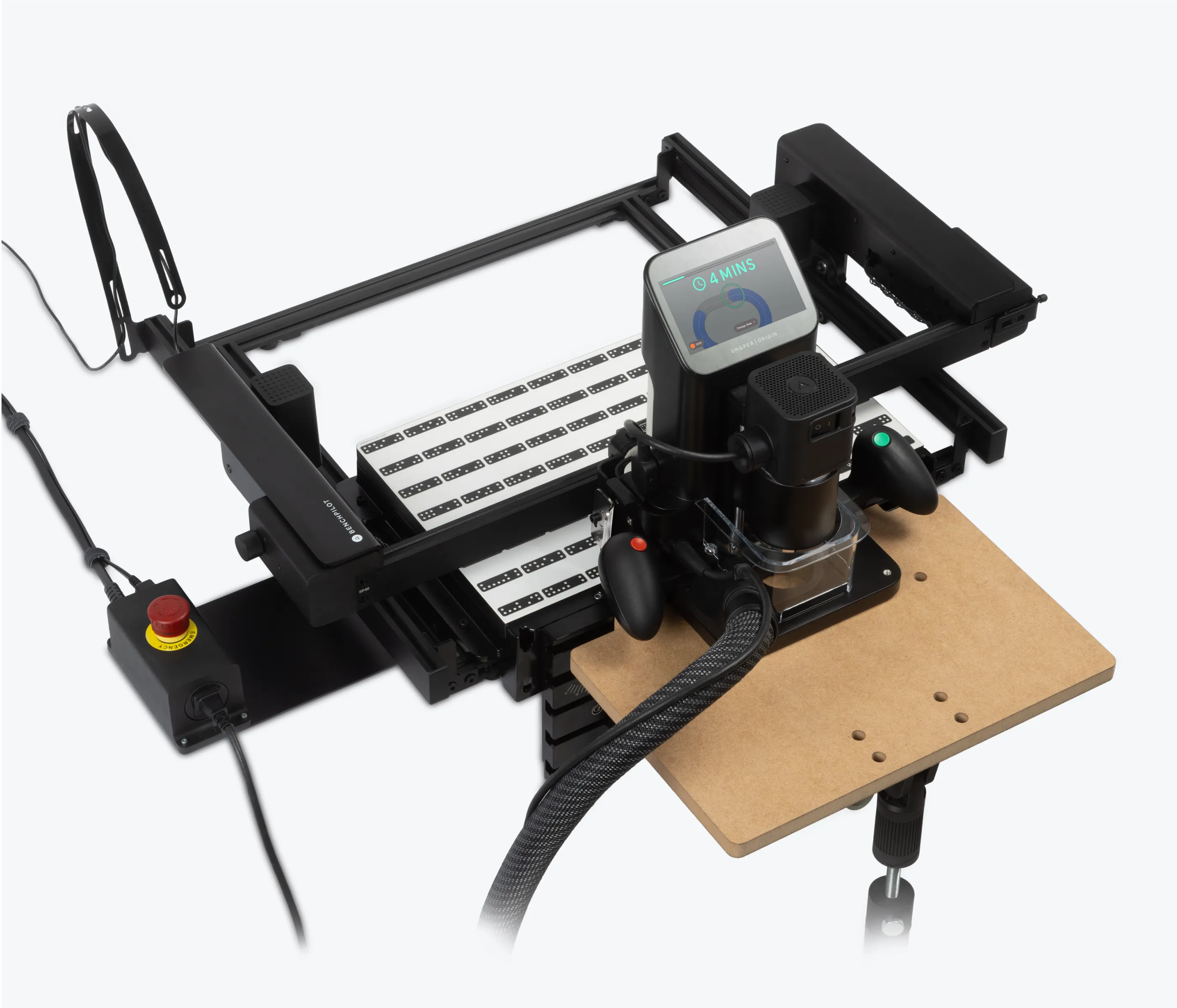

Clip your Shaper Origin router into BenchPilot to turn it into a hands-free milling machine, capable of vertical or horizontal cutting. Let BenchPilot drive Origin so you can focus on other tasks at hand. Simply unclip Origin to use it elsewhere when needed. Compatible with both Gen1 and Gen2 Origin routers.

Dimensioned and sized to fit perfectly with Shaper Workstation, BenchPilot creates a gantry-like system with horizontal and vertical milling capabilities – flexible for cutting joinery, inlays, intricate engravings, or profiles. It can also be mounted without Workstation and fit directly to your bench. It’s great for batch work or simply tedious and time-consuming jobs. Best of all, it doesn’t require complicated software, g-code, or other types of CNC programming to operate. If you know how to operate Origin, you’ll know how to operate BenchPilot.

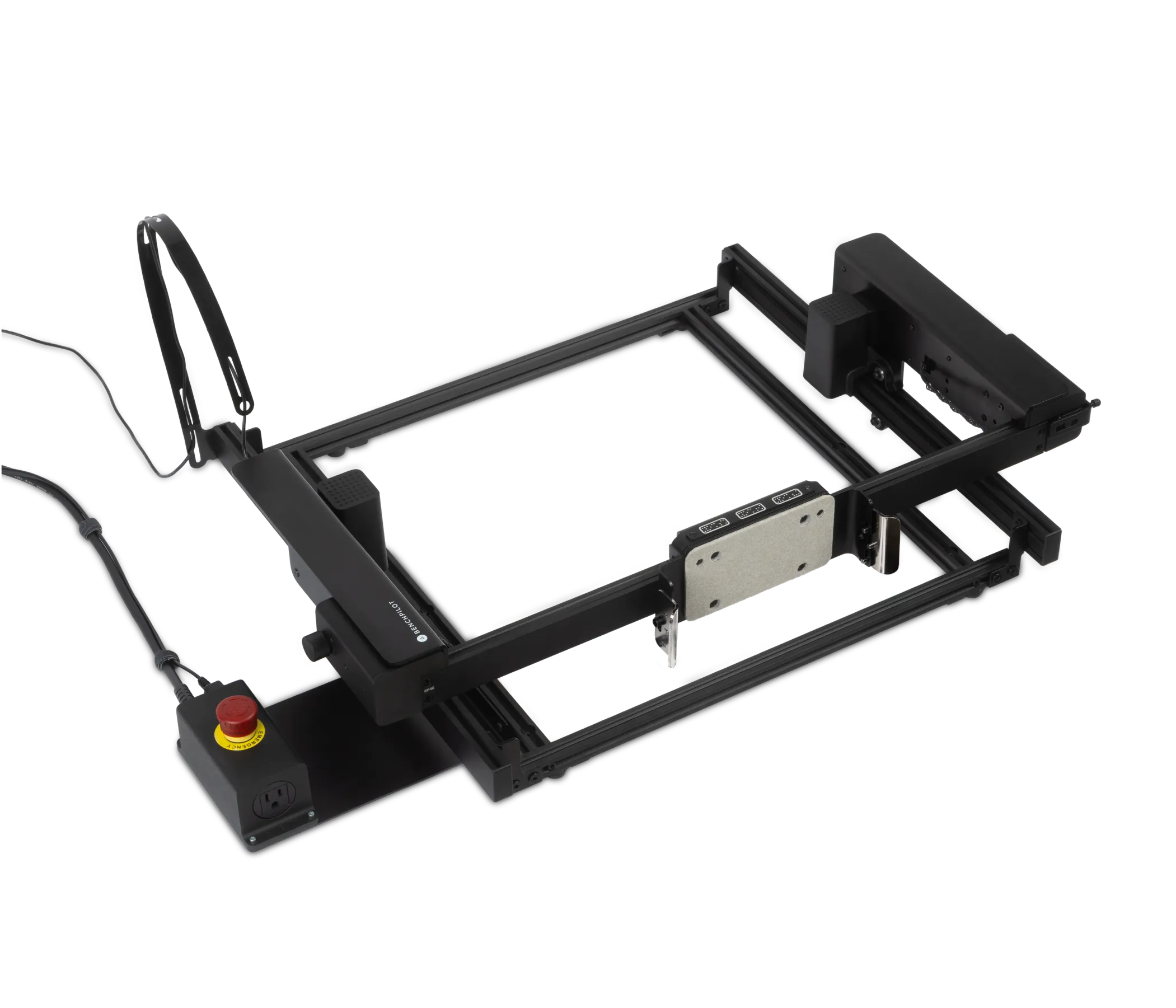

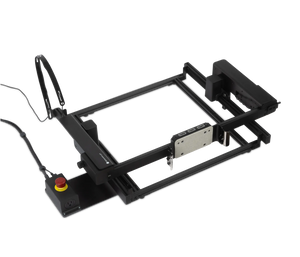

Includes

  • Right & left-side arms: motor housings, linear motion, and feed rate control.
  • Base frame: custom aluminum t-track frame mounts to Shaper Workstation.
  • Origin harness: mounts on Origin with quick-release attachment for BenchPilot.
  • Crossbar: connects BenchPilot to the Origin harness for X/Y motion control.
  • E-stop: emergency stop to cut power to BenchPilot and Origin.
  • Power brick: AC/DC power supply for BenchPilot and Origin.
  • Feet: help keep BenchPilot stable when clamped to your workbench.


ADD WORKSTATION / SHELF UPGRADE KIT

  • Workstation is the ultimate workspace and fixturing solution for your benchtop cutting operations. It’s designed to streamline and expand upon Origin’s abilities, offering rapid, repeatable and precise fixturing of a wide range of stock configurations. Click for more details on Workstation.
  • The Shelf Upgrade Kit maximizes the horizontal cutting area with Workstation. This large shelf is over 3x bigger than the Shelf Assembly included with Workstation. Click for more details on Shelf Upgrade Kit.
  • Add in pull-down menu above for savings compared to purchasing items separately.



Specifications

  • Max. Height: 176mm (6.9")
  • Width without E-stop: 848mm (33.4")
  • Width: 955mm (37.6")
  • Depth: 568mm (22.63")
  • Assembled Weight: 12.85kg (28.3 lbs)

Features & Benefits

Hands-free

Moves Origin across your workspace with a belt drive system.

Go Vertical

With Workstation’s vertical Clamping Face, BenchPilot is capable of cutting “on end,” an operation most CNC machines don’t support.

Go Horizontal

Using the Shelf Upgrade Kit, it’s easy to profile large parts horizontally.

Simple to Use

Set up the project like you would normally with Origin, then click Pilot to begin cutting. Design directly on Origin and begin cutting in minutes. Interrupt a cut if needed and resume cutting easily.

Timer Display

Origin will display its progress and time remaining while cutting with BenchPilot.

Variable Feed Rate

Real time control - adjust from 1 ipm to 45 ipm using Origin’s display or via the feedrate knob on the side of BenchPilot.

Emergency Stop

If and when you need it - stop immediately.

Toolpath Pocketing

When BenchPilot approaches a pocket to clear out it will automatically determine the best path to remove material efficiently.

Cut Selection

If your design has multiple features and shapes you can select individual paths for BenchPilot to cut, or simply cut all at once.

Multiple-depth Cuts

Adjust pass count and cut depth all onscreen, even mid-operation (up to ~1.7” / 43 mm deep).

Pilot Mode

Accessible only when Origin is docked with BenchPilot (similar to AutoPass’s interface and functionality - AutoPass is not required to use BenchPilot).

Ships in Parts

Some assembly required - detailed instructions included.

Warranty

Automatic 1-year warranty from Shaper - receive a free extension to 2 years when you register your BenchPilot (view warranty details).
